Trojan 6 blade model info

[Lawrence Smith]

How many Emerson Trojan 12” 6 blade models were made? I think that’s a great looking unit, someday I’ll find one

[Russ Huber]

10 minutes ago, Lawrence Smith said:

How many Emerson Trojan 12” 6 blade models were made? I think that’s a great looking unit, someday I’ll find one



[Chris Campbell]

3 made.

5210, 5410 pancakes plus above 5610.



[Lawrence Smith]

Very nice ! Thanks for the info!!

[Chris Campbell]

On the old forum Geoff posted a line up of the early Trojans. This excludes all brass version, 51646, 52646 along with later two versions with step bases

Six blades found in this earlier batch.

Notice how the 5410 pancake motor is slightly thicker.

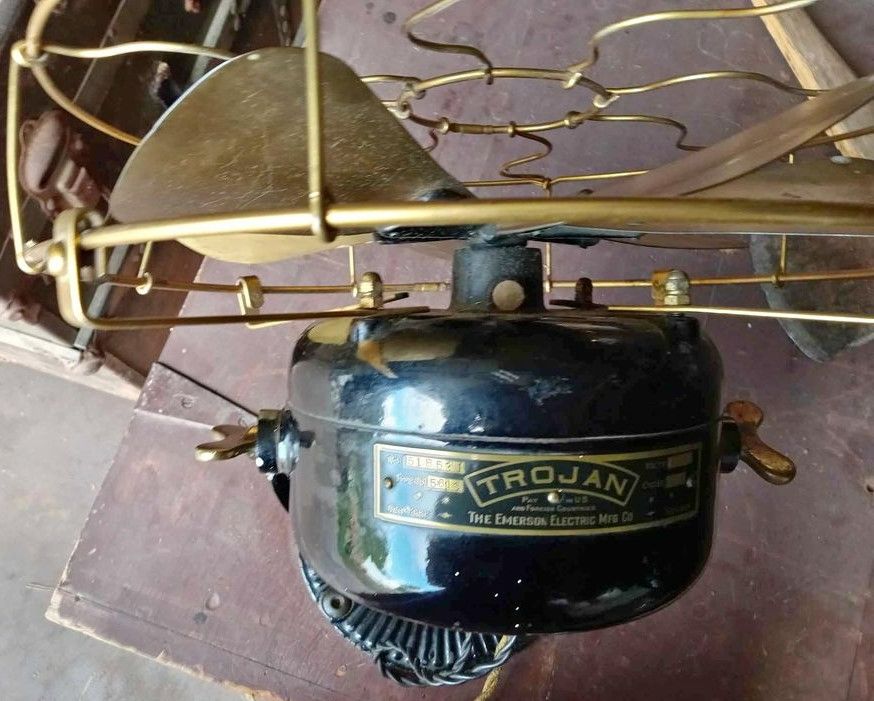

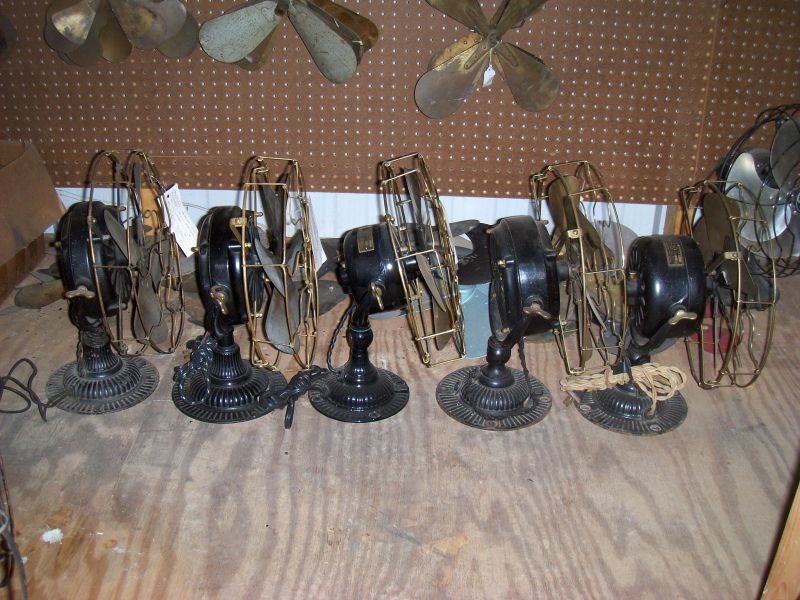

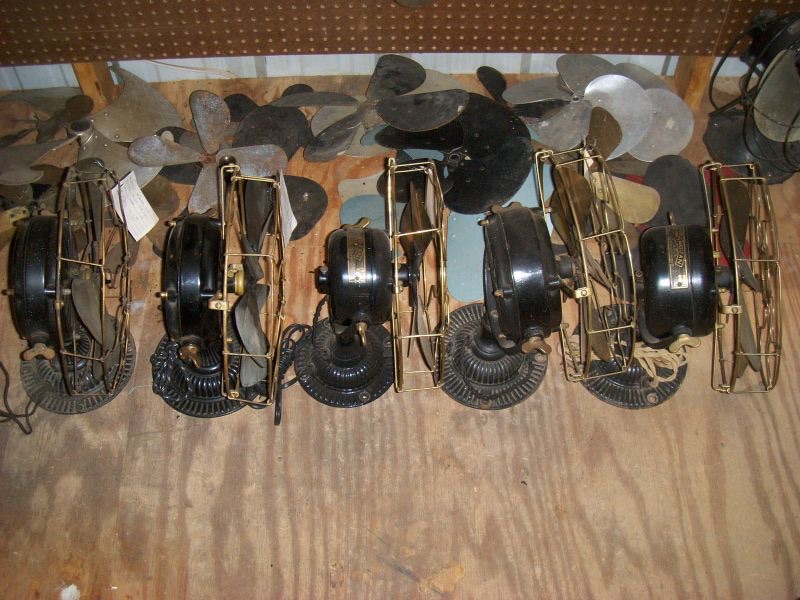

here's a couple of pic's of those early Trojan fans 5110 , 5210  '02-'05   5310 , 5410

'06-'08 ,  5610  '09-'10   and then the fluted bases disappeared ???  the dating is my guess only from old electrical world fan notes.  Not really sure at all about the exact duration of the 5410 or the transition year to the 5610.

Edited September 27, 2023 by Chris Campbell

[Paul Michael]

9 minutes ago, Chris Campbell said:

On the old forum Geoff posted a line up of all the Trojans excluding the all brass version

I've got that one! (-;

Chris, will you, or Russ, or some, post photos of the rotor/stator, and dimensions of the Motor housing? Are these different form the 4-wing Trojans?

[Chris Campbell]

40 minutes ago, Paul Michael said:

I've got that one! (-;

Chris, will you, or Russ, or some, post photos of the rotor/stator, and dimensions of the Motor housing? Are these different form the 4-wing Trojans?

4 wing is 4 pole. 6 wing is 6 pole

[Paul Michael]

16 minutes ago, Chris Campbell said:

4 wing is 4 pole. 6 wing is 6 pole

Thank you, that's what I expected. I just like to _ SEE these things (-;. It seems there's a lacking of internal photos of any models, that would be useful to many current members I'm sure, and ultimately would be a great help for future members/users. (No, I'm not volunteering, lol.)

[Chris Campbell]

Just like GE Pancake. Shaded motor. 4 pole. Found on 2 speed pancakes. Choke coil is 1 set of winding. No start windings on shaded pole.

[Paul Michael]

27 minutes ago, Chris Campbell said:

Just like GE Pancake. Shaded motor. 4 pole. Found on 2 speed pancakes. Choke coil is 1 set of winding. No start windings on shaded pole.

Thank you, but I have plenty of both; I was referring to the 6-pole!
(Did you rewind those? I picked up a counter I'm going to rig to my coil winder because - I can't keep track anymore.)

[Russ Huber]

9 hours ago, Lawrence Smith said:

How many Emerson Trojan 12” 6 blade models were made? I think that’s a great looking unit, someday I’ll find one

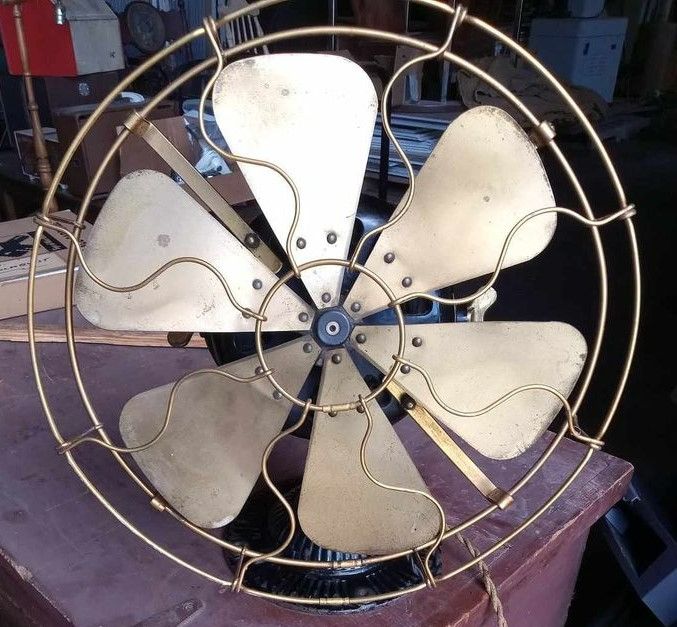

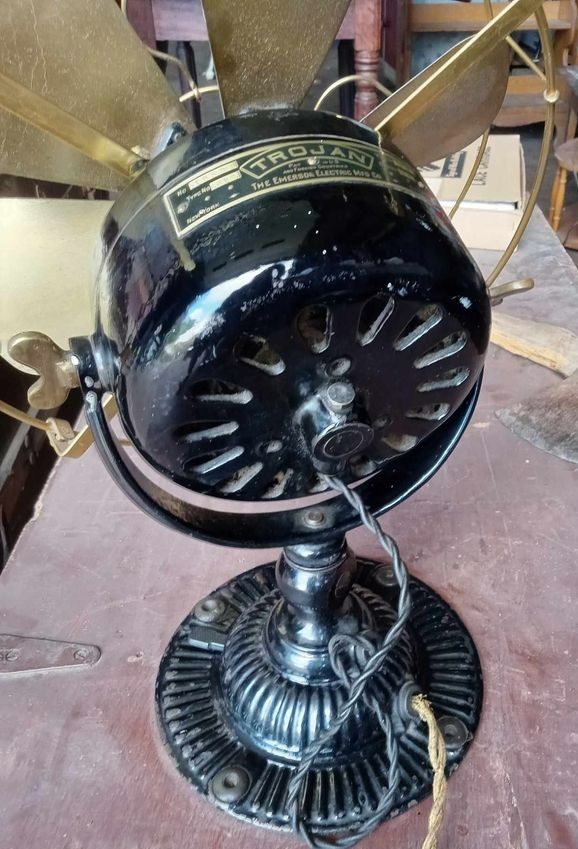

BTW, that is not my Trojan above, but I thought I would share a "great looking unit". 🙂

[Gary Hagan]

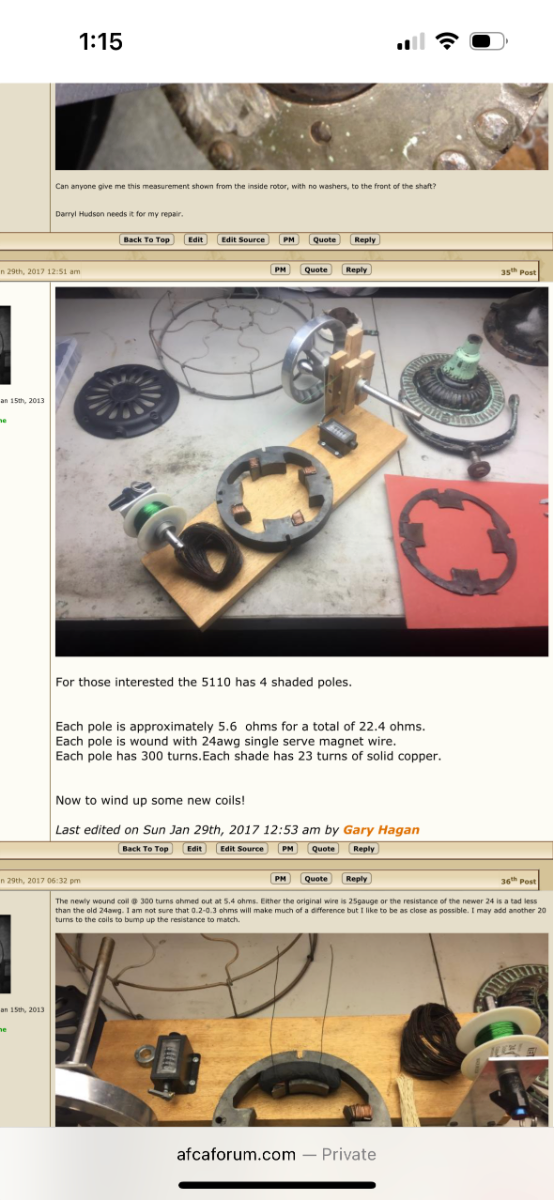

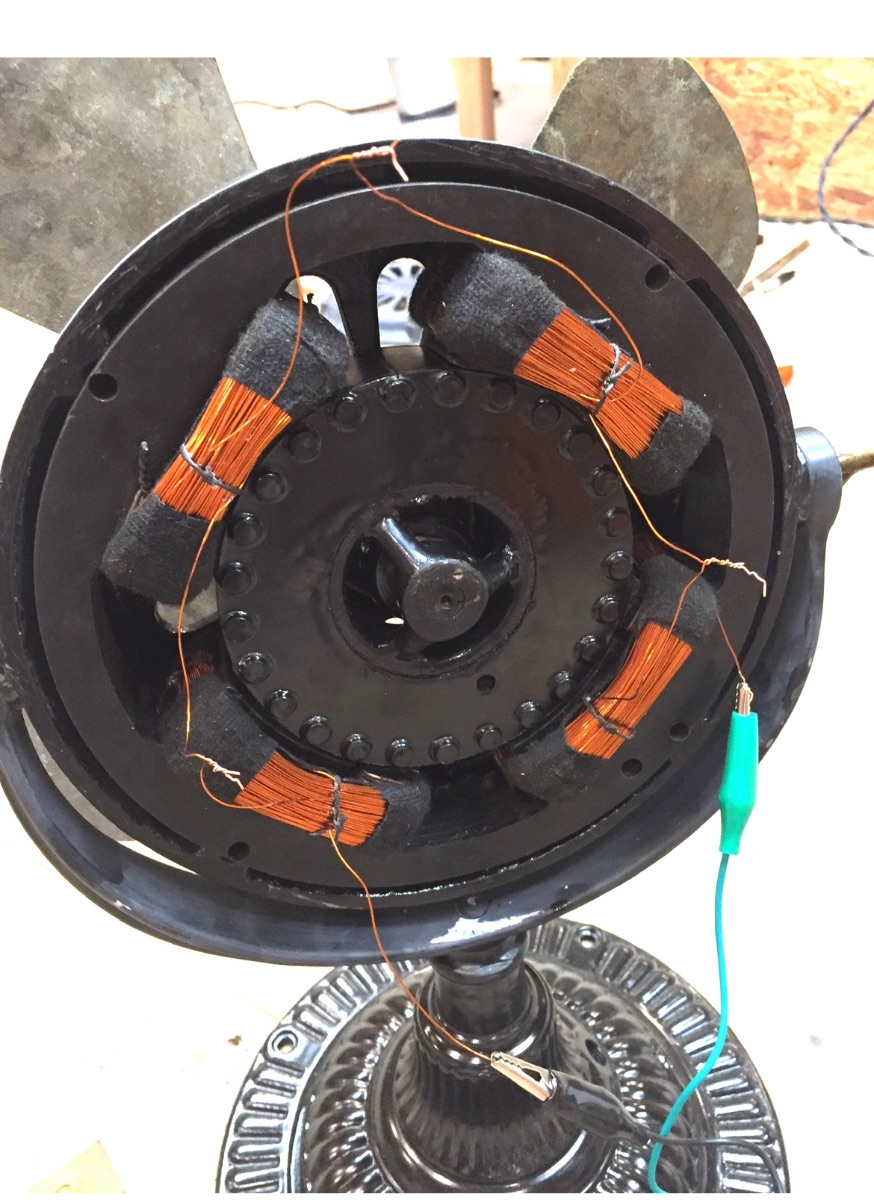

I did a write up on the old forum with motor winding info for a 5110.

If memory serves me there are 300 turns per shaded pole..24awg wire

[Paul Michael]

11 hours ago, Gary Hagan said:

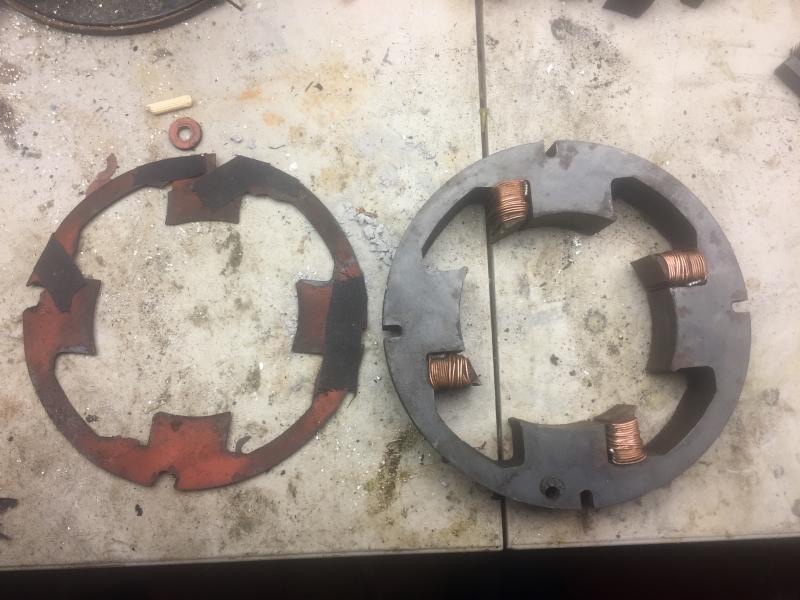

Did you re-cut the stator laminations!? That's a job alone worth detailing!  👍🏼



[Gary Hagan]

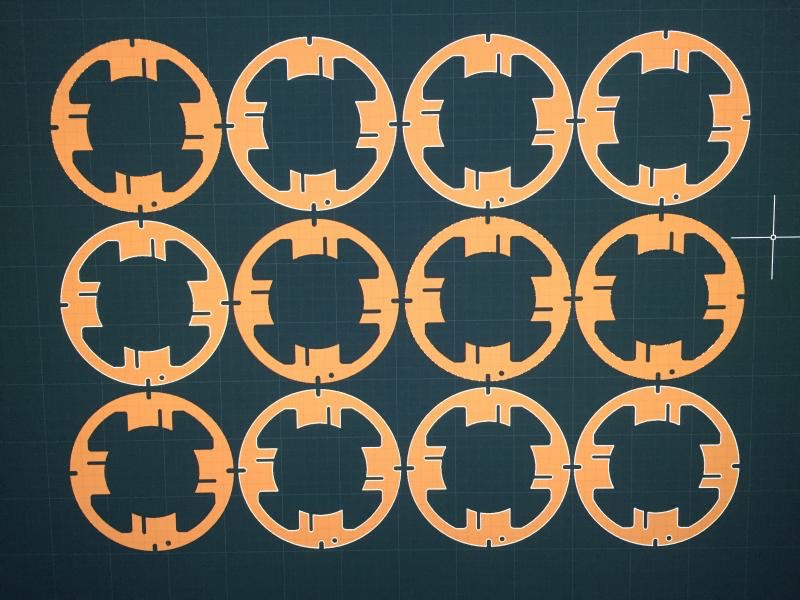

Video of me laser cutting the vulcanized fiber insulators.

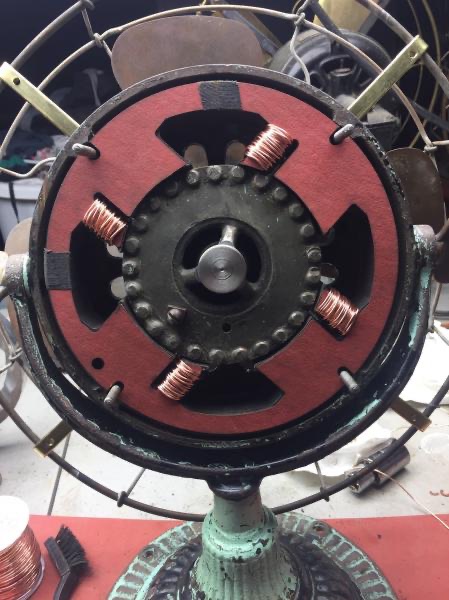

Also information on winding choke coil below.



[Steve Butler]

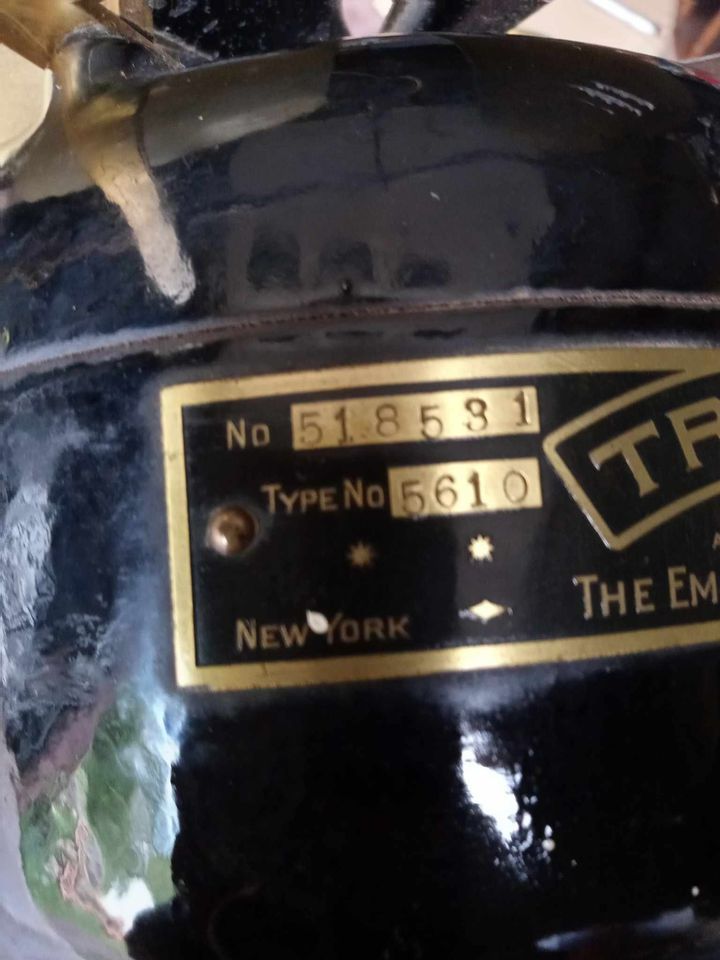

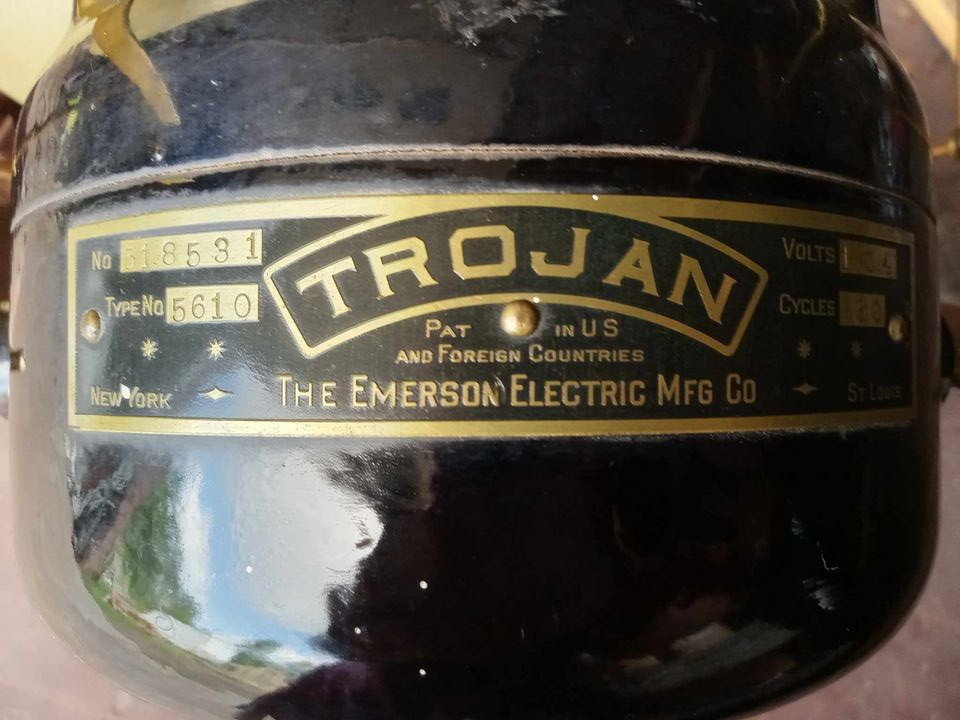

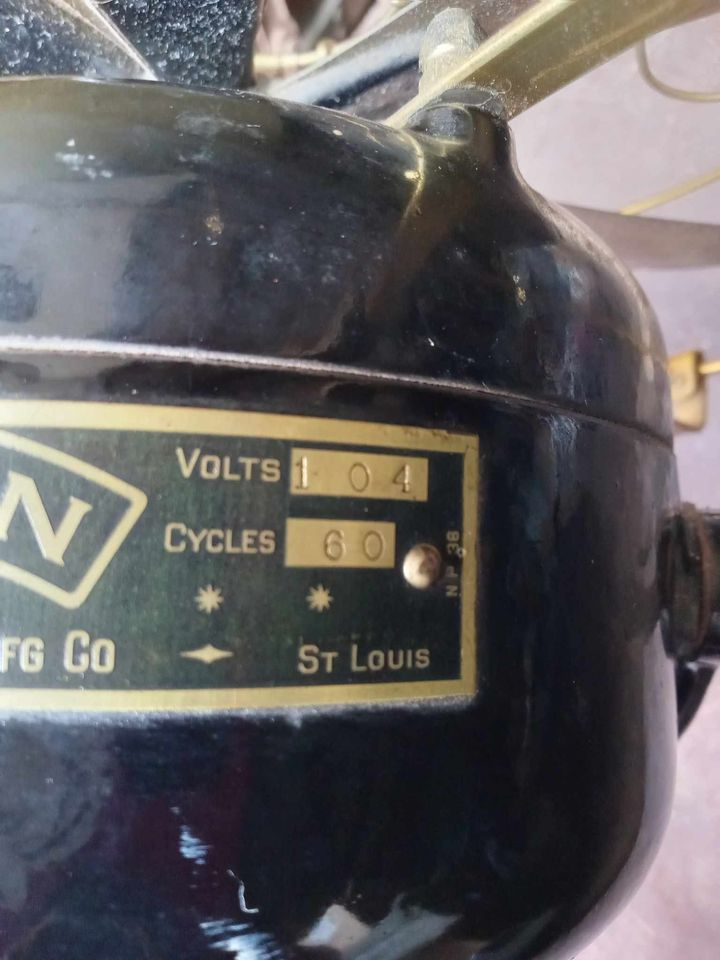

I can’t resist showing one of my favorite fans. My little grandson actually got his hand smacked for touching this one!  Wesco 5610.  Even though his middle name is Emerson, a guy has to draw the line somewhere.

[Scott Jeffrey]

Love the bells

[Chris Campbell]

Maybe someday this will get a switch.

5210 with thinner housing









[Steve Butler]

2 hours ago, Scott Jeffrey said:

Love the bells

The right tone was more important than the look.  😏

Edited September 29, 2023 by Steve Butler

[Jim Kovar]

Holey stator core, Batman!

What's the purpose?

[Gary Hagan]

18 hours ago, Chris Campbell said:

Maybe someday this will get a switch.

5210 with thinner housing









If only there was someone who could make porcelain switch bases…. 🙂

Edited September 29, 2023 by Gary Hagan

[Russ Huber]

On 9/28/2023 at 7:28 PM, Steve Butler said:

I can’t resist showing one of my favorite fans. My little grandson actually got his hand smacked for touching this one!  Wesco 5610.  Even though his middle name is Emerson, a guy has to draw the line somewhere.



Edited September 30, 2023 by Russ Huber
