Wall Bracket CAD

[Louis Luu]

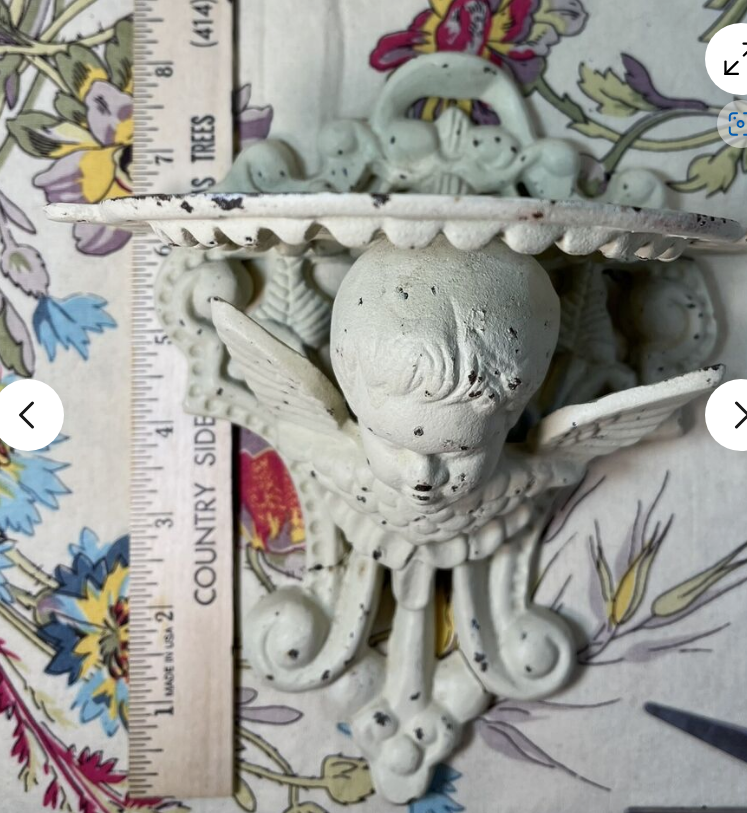

Can't find the original posting for a wall stand (Westinghouse?).  I picked this up and looks neat.  It is a planter stand Cherub wall mount.  I think this will be neat as a wall mount for a fan.  Will draw it up.

[Louis Luu]

[Lane Shirey]

Any news on the Westinghouse 90 degree wall adapter? Last I read you made a plastic one..

[Russ Huber]

24 minutes ago, Lane Shirey said:

Any news on the Westinghouse 90 degree wall adapter? Last I read you made a plastic one..



[Louis Luu]

1 hour ago, Lane Shirey said:

Any news on the Westinghouse 90 degree wall adapter? Last I read you made a plastic one..

Not yet.  Have not ordered.  I have to watch my funds....limited to what I can order.

Edited November 20, 2023 by Louis Luu

[Louis Luu]

Need to angle it and draw the top portion.  Also need to add the arms.

[Louis Luu]

Lane....I'll plan on ordering one WE Adapter prototype towards end of November/December.

[Louis Luu]

Need the top piece to hold the fan and the bracket for mounting.  I will make the bracket when the piece arrives.

[Louis Luu]

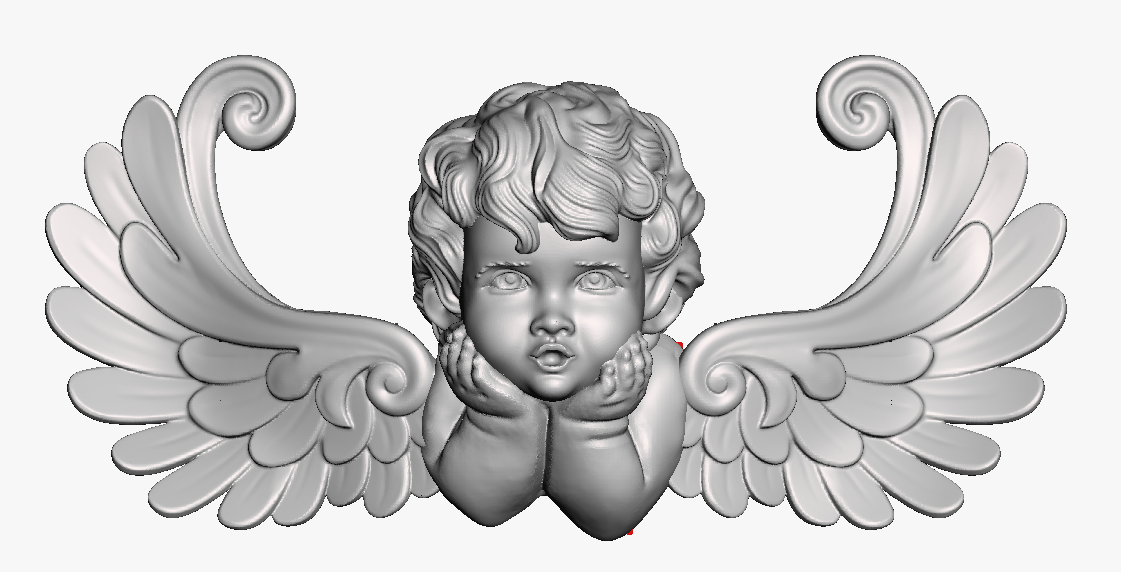

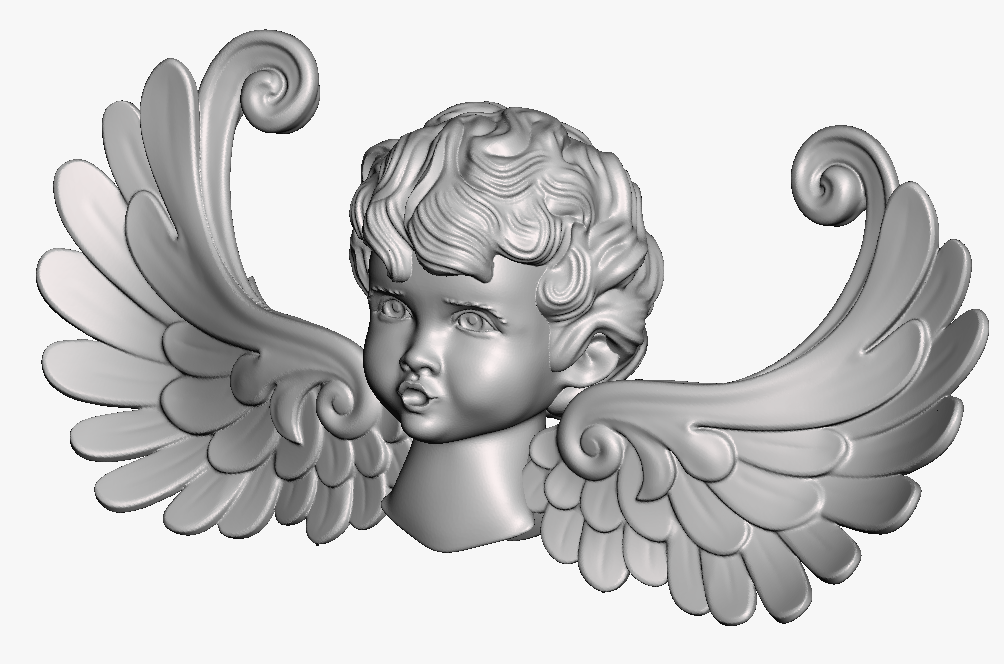

I like the wings on this one better.

[Louis Luu]

On 11/20/2023 at 2:55 PM, Russ Huber said:



No, not this one.  It was a wall mount and a fan sitting on top.  I remember seeing it with no patent of any sort and I remember Kovar posted it in the old forum before.  I just think it would be neat to have one recreated aesthetically with an angel watching down since there was no definitive picture and no patent.

Edited November 22, 2023 by Louis Luu

[Louis Luu]

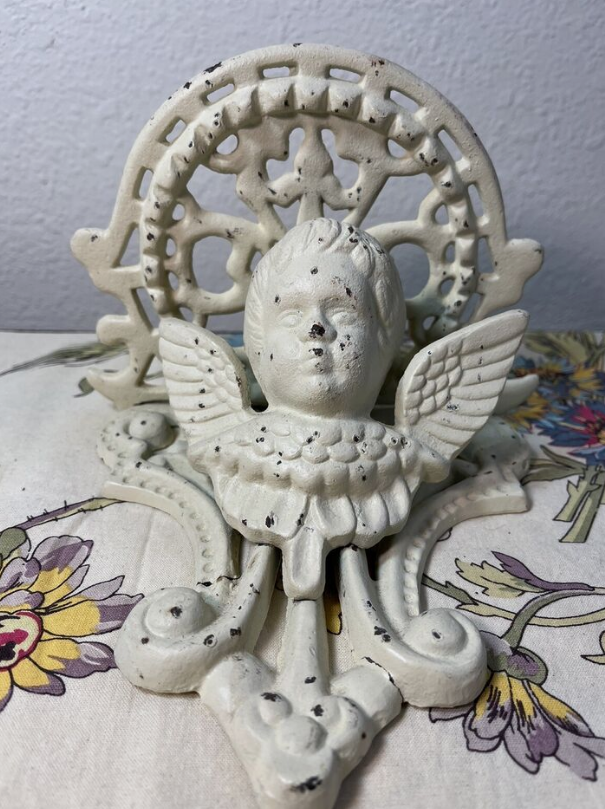

Found it.

[Louis Luu]

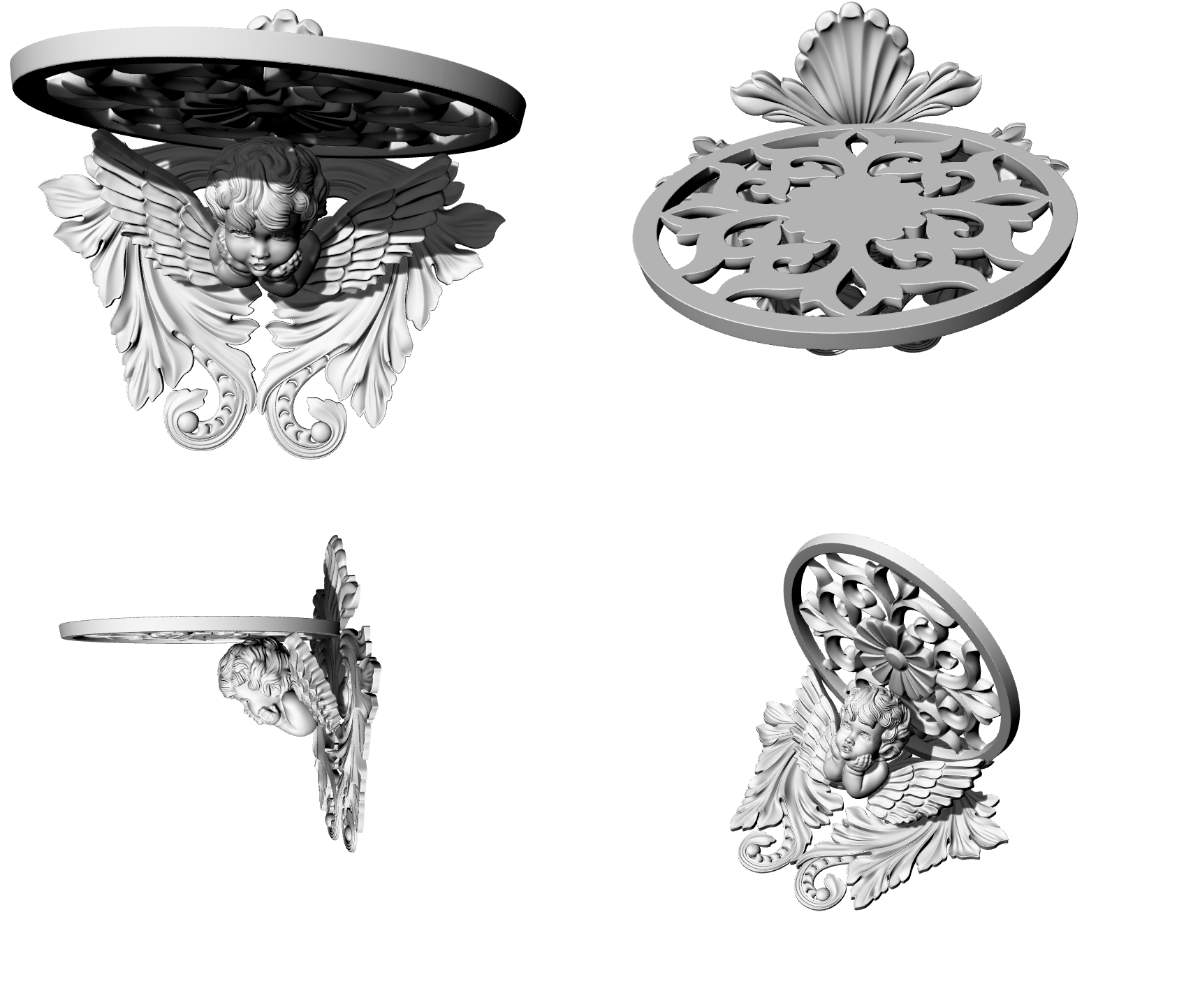

I'm thinking something like this....the back end will need to be extended to allow the fan to rotate from side to side.

[Louis Luu]

Designed for stationary 12 inch model.  Will be making another version to allow oscillation.  Can also reduce the size to hold toy motors.

[Lane Shirey]

That’s beautiful. I might be interested in 2 depending on how much weight they can hold.

[Louis Luu]

2 minutes ago, Lane Shirey said:

That’s beautiful. I might be interested in 2 depending on how much weight they can hold.

It will hold!  I'm mocking up another version for the vane oscillator.  There needs to be clearance for the oscillation.

[Louis Luu]

Need a little bit more work.

[Lane Shirey]

How about adding holes for mounting the fan so it doesn’t get knocked off?  I know they all have different spacing, so that would take some thought.

[Jim Kovar]

4 hours ago, Lane Shirey said:

...so it doesn’t get knocked off?

Lane,...   you must throw
 some rowdy parties!

[Lane Shirey]

On 11/20/2023 at 6:51 PM, Louis Luu said:

Lane....I'll plan on ordering one WE Adapter prototype towards end of November/December.

Any progress on the WE Adapter?

7 hours ago, Jim Kovar said:

Lane,...   you must throw
 some rowdy parties!

Sure do! Shame you live so far away!

Edited December 19, 2023 by Lane Shirey

[Louis Luu]

4 hours ago, Lane Shirey said:

Any progress on the WE Adapter?

Sure do! Shame you live so far away!

Not end of December yet....I do have to watch my budget.

[Bob Peshoff]

Louis,

I will be interested in one of each.  Oscillating and stationary.
