David Kilnapp Posted January 2, 2023 Posted January 2, 2023 Hi Louis. PM sent with measurements for two tables. Quote
Louis Luu Posted January 3, 2023 Author Posted January 3, 2023 2 hours ago, David Kilnapp said: Hi Louis. PM sent with measurements for two tables. Lets shoot for this one. I need me a table as well for one of my motors. Quote

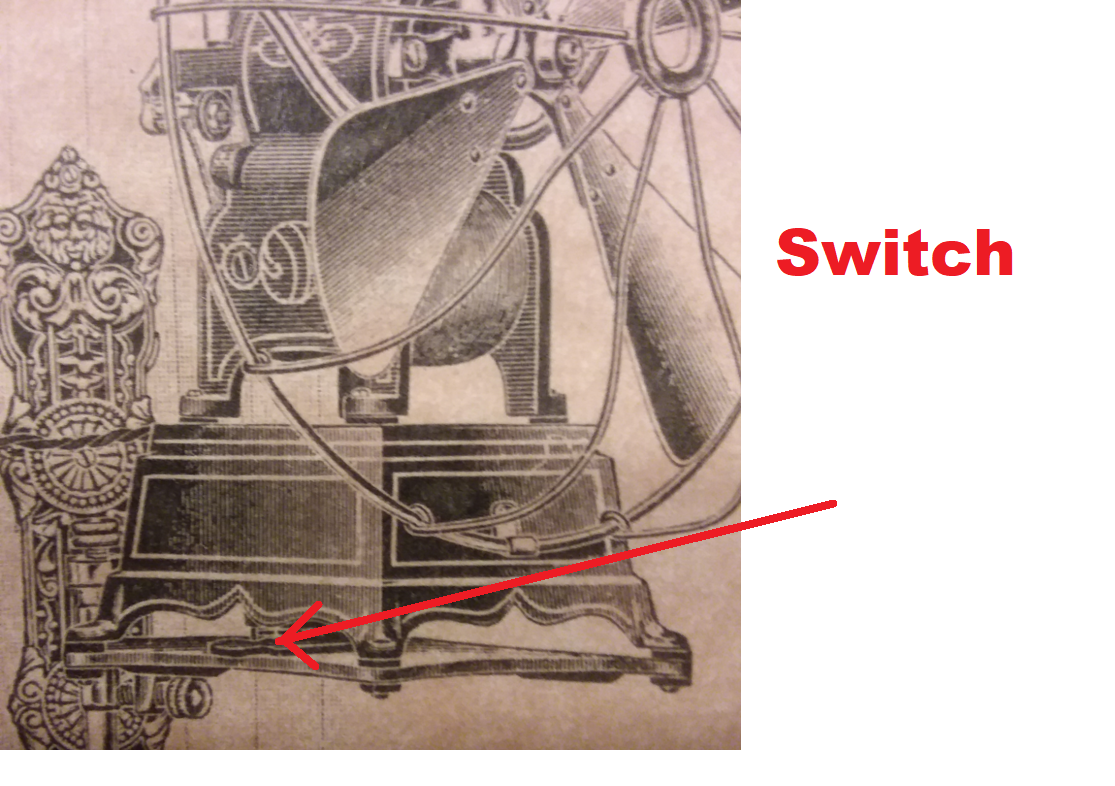

Louis Luu Posted January 3, 2023 Author Posted January 3, 2023 I found the perfect motors for the new table. Porter No. 1, 2 and 3. Also, the Porter No. 3 came with a lever switch I need to make copies of. 1 Quote
Jay Carter Posted January 4, 2023 Posted January 4, 2023 Vintage kerosene lamp wall mounts were made as cast iron reproductions for many years. Therefore not too expensive. There are also many alleged originals on fleabay now. 1 Quote
Louis Luu Posted January 5, 2023 Author Posted January 5, 2023 Basic model with all the corners and the feet rounded. Quote
Louis Luu Posted January 7, 2023 Author Posted January 7, 2023 Scroll lines is fixed. They all have the same thickness. I will resubmit and see if there is any more errors. Quote
Louis Luu Posted January 7, 2023 Author Posted January 7, 2023 (edited) Mounting bracket next. Will be working off of this image. Edited January 7, 2023 by Louis Luu Quote
Louis Luu Posted January 16, 2023 Author Posted January 16, 2023 Just need the mounting bracket. The artwork is pretty much done. Quote
Louis Luu Posted January 23, 2023 Author Posted January 23, 2023 Just need rounding and smoothing. All lines are even. Quote
David A Cherry Posted January 25, 2023 Posted January 25, 2023 Wonderful job … Definitely put me down.. I am all in.. Quote
Louis Luu Posted February 2, 2023 Author Posted February 2, 2023 Almost there...computer keeps crashing. I have one last piece to join. All the individual pieces have been smoothed and tapered. Each section takes around 2 hours to boolean join. Quote
Louis Luu Posted February 5, 2023 Author Posted February 5, 2023 (edited) Finally got the piece done. Edited February 5, 2023 by Louis Luu Quote
Louis Luu Posted February 5, 2023 Author Posted February 5, 2023 I've sent it off to be printed in plastic first to make sure the parts look right and fit before printing in metal. Quote
Louis Luu Posted February 5, 2023 Author Posted February 5, 2023 Cap will go on top of the rod just like the picture. Thumb screw will lock the rod and allow tilting the table platform and rotation. Quote
David A Cherry Posted February 6, 2023 Posted February 6, 2023 (edited) Looks really great Louis.. . 3-D printing is a big game changer.. things that were ornate and complex were very expensive to manufacture, but with 3-D printing it actually saves material so in some ways it’s cheaper and faster.. And I thought the Microwave was amazing.. Edited February 6, 2023 by David A Cherry 1 Quote
Louis Luu Posted February 6, 2023 Author Posted February 6, 2023 12 minutes ago, Russ Huber said: I was a tad bit off. Now to figure this part out. Quote
Russ Huber Posted February 6, 2023 Posted February 6, 2023 1498392942589789000-00593719 (storage.googleapis.com) 1 Quote
Louis Luu Posted February 6, 2023 Author Posted February 6, 2023 (edited) I will need to fix as the intent of the patent is to allow horizontal and tilting motion. This is easy to do and will not be too involve like the motifs for the background. Edited February 6, 2023 by Louis Luu Quote
