Edison C Frame Bipolar field wire

[Tony Clayton]

Better views of the glass fiber spaghetti tubing.

Edited February 15, 2023 by Tony Clayton

[Dan Nguyen]

On 2/15/2023 at 9:31 AM, Tony Clayton said:

Better views of the glass fiber spaghetti tubing.



What is their smallest diameter?

[Tony Clayton]

The smallest in the examples I made is just under 4mm outside diameter.

[Tony Clayton]

Glass spaghetti  tubing before varnish.
2mm ID
3.3mm OD



Edited March 29, 2023 by Tony Clayton
Better photo

[Tony Clayton]

On 2/4/2023 at 8:50 PM, Rod Rogers said:

In the "Good Ol' Days" this was commonly called "Spaghetti". I think I still have some in the junk box.

~Sparky~







Here's some Westinghouse spaghetti 🍝~ Sparky~

[Tony Clayton]

On 2/1/2023 at 4:38 PM, Tony Clayton said:

My portion of this part of this project is complete. Possibly more to come.

Here's the more. A supply wire done in the same Edison feild wire styling.

[Tony Clayton]

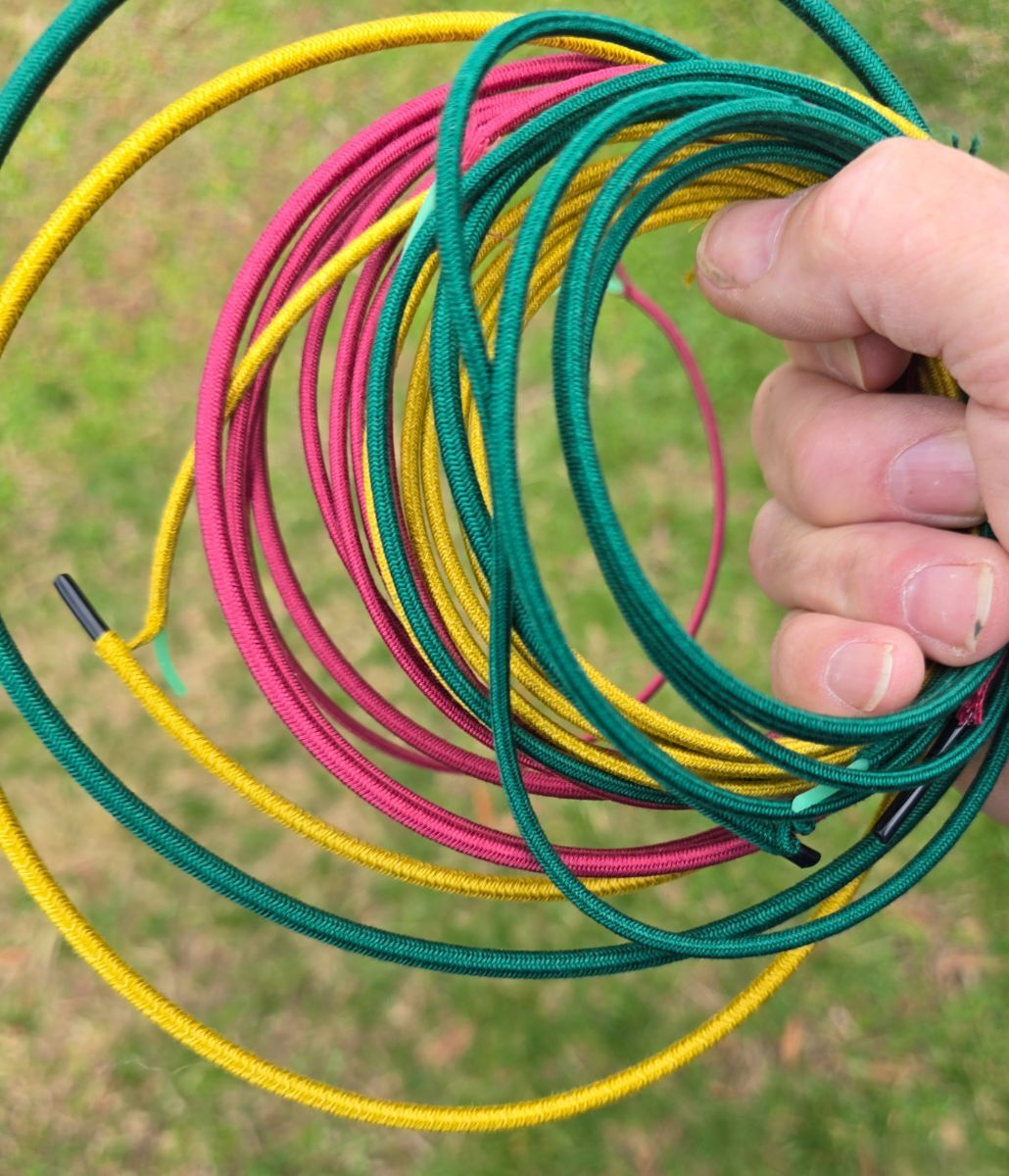

Color can be lighter as well.

[Roger Borg]

1 hour ago, Tony Clayton said:

Color can be lighter as well.

Hi Tony-

I've only ever seen braided wire, but this appears to be coiled.

What applications would this have been used in?

What would the benefit of this sheathing be?

Thanks...

[Tony Clayton]

This was a customer request. The objective was to look like the Edison feild wire. My concern when ask to do it ,was it's not a braid. Therefore susceptible to unwrapping under consint articulation. I think I 🤔 solved that with a modification to the process. The benefit is purely esthetic. Just simply looks old. Not a modern cookie cutter comerically made wire. Certainly not for everyone. But it's nice to have options.

[Tony Clayton]

Further examples.

[Marc Sova]

You are a community treasure my friend.
