I'm new to working on these later Century fans. Is there a way to open the gearbox on both of them without destroying the pot metal?

Posted

If that rear cap doesn't screw off by hand, then no. I have owned both of those same model fans in the past & both of them turned into basket cases.

  • Like 1
Posted
13 hours ago, Stan Adams said:

If that rear cap doesn't screw off by hand, then no. I have owned both of those same model fans in the past & both of them turned into basket cases.

Do you remember which way the cap unscrews?

Posted

Been a very long time, but quite certain it is CCW

Posted

I'm not too sure where to go from here. I started chipping away at the rubber gasket that in between the cap and tried soaking it in penetrating oil and the cap won't budge.

Posted

The pot metal threads are probably fused and distorted.

Posted

Sucess. Turns out the rubber trim was the problem, after picking away at it and sitting the back cap in a pool of WD40 it broke loose. The cap is still perfectly intact.IMG_3893.jpg

Posted

you should run to the store and buy a lottery ticket.

  • Like 2
  • Haha 1
Posted
12 hours ago, Anthony Lindsey said:

you should run to the store and buy a lottery ticket.

Sadly that luck may not work again for the second century. Somebody tried opening it with a tool and damaged the cap a bit. I’ll still give it a try in the future but I’m expecting it to fall apart.

Posted

I avoid the Centurys except for the 5-speed models that are all cast iron and steel without the usual decomposing pot metal parts.   Sometimes you'll come across a pot metal 3 speed century that is in good condition.  Check to see that you can remove the rear gearbox cap before buying and look closely for any cracks in the pot metal.

Posted
17 hours ago, Steve Stephens said:

I avoid the Centurys except for the 5-speed models that are all cast iron and steel without the usual decomposing pot metal parts.   Sometimes you'll come across a pot metal 3 speed century that is in good condition.  Check to see that you can remove the rear gearbox cap before buying and look closely for any cracks in the pot metal.

I can now see why people really like the early models.

Posted

For some reason I can casually move the front bearing back and fourth withA some force. But it doesn’t ever slide out of the housing.

Posted

Who would’ve thought that the two nails for the tag actually held the stator in. Explains why I was unable to remove the stator.E5B38A78-610E-4CAA-9DF1-C3A3BE7FAA2F.thumb.jpeg.43f155bb193c316e2a286e2c33a606d6.jpeg

Posted

Thanks for showing the screws in the stator.That could be useful information in the future for myself and others.

  • 1 year later...
Posted

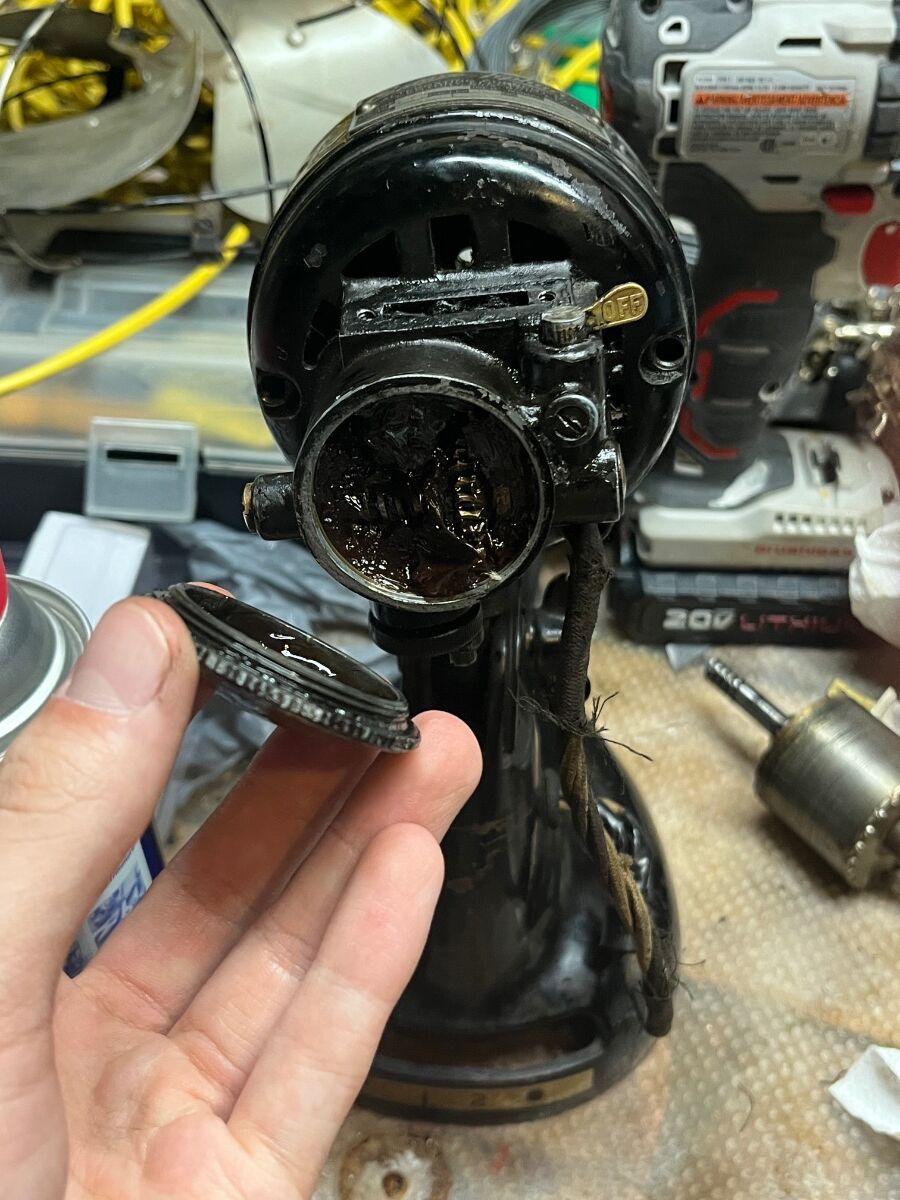

I decided to try my luck at the second one and I managed to get the cap off. It’s a little tight to screw on but the threads are perfect.

Posted

You’re a glutton for punishment.
