Tim Babcock Posted April 1 Share Posted April 1 I think I have the right or very close magnet wire. The winding had shorted in the past and burnt down a couple of layers of windings. I don't think its worth trying to repair it. Better to try to rewind it. Any help appreciated. My idea so far is to 1. make a template out of the coil using a dowel with a hole drilled in the center it and a screw so I can make a 4 corner inside patter to wind. I was wondering the patter to wrap. Does each coil wind the same way or direction? Does the coil plates [steel laminate with the shaded copper have a front and a back? Any tips to make it go easier also appreciated. Thanks. Quote Link to comment Share on other sites More sharing options...

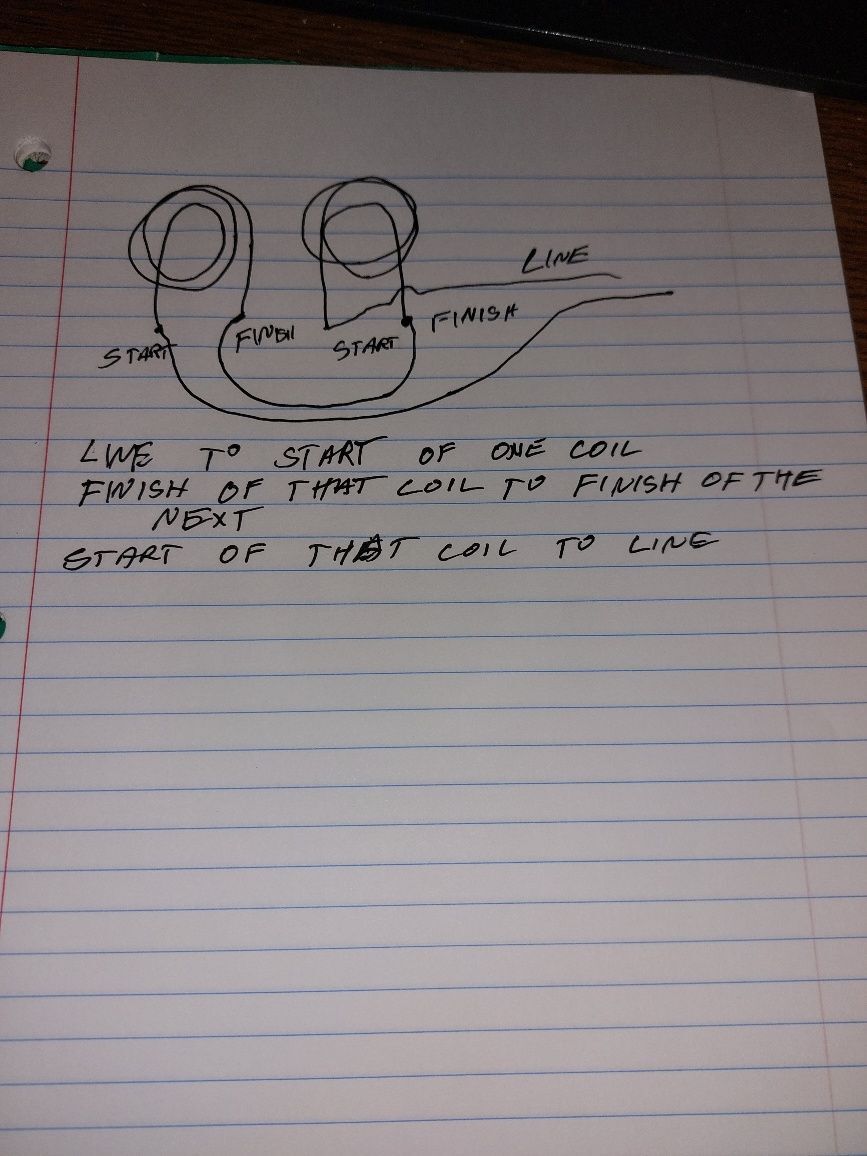

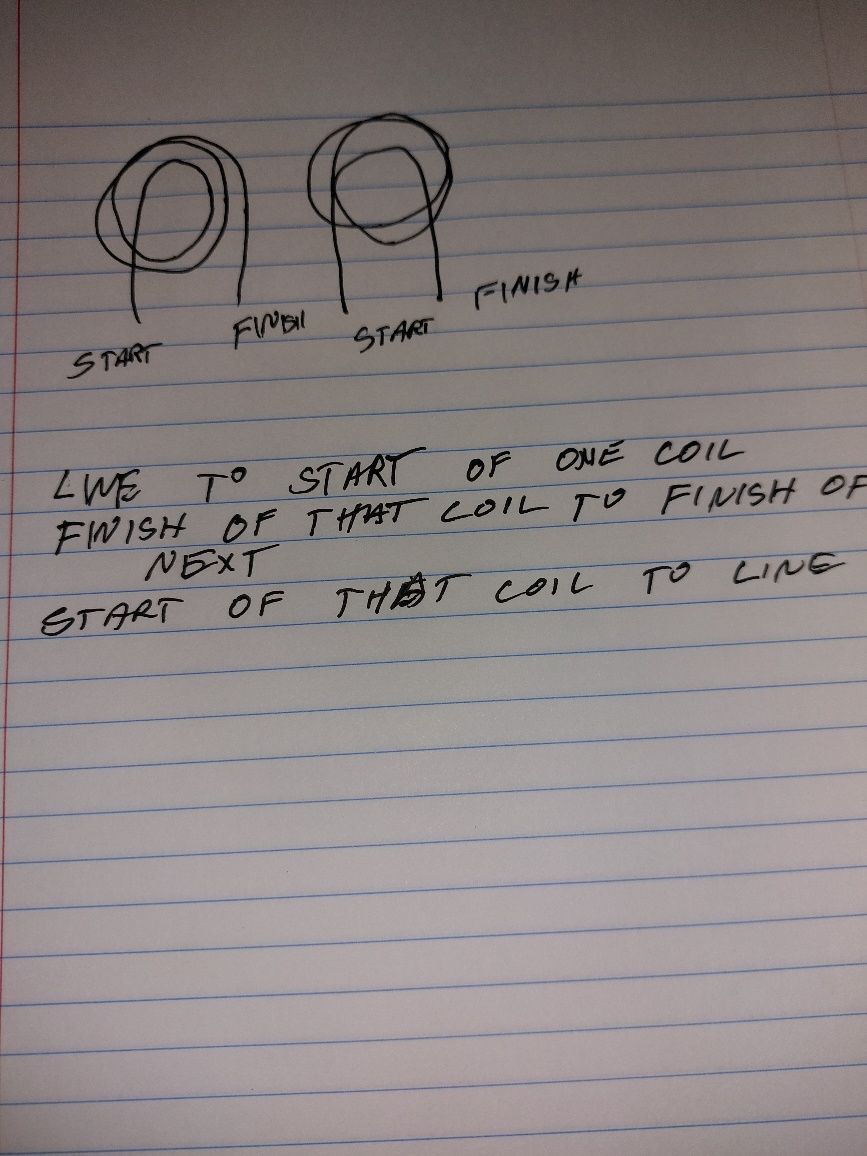

Mark Olson Posted April 1 Share Posted April 1 The coils will not really have a direction, here is a picture. As a rule, start to start, finish to finish, start to start, finish to finish ....... Quote Link to comment Share on other sites More sharing options...
Tim Babcock Posted April 1 Author Share Posted April 1 Thanks that is what I needed. No particular way they install in the stater? Quote Link to comment Share on other sites More sharing options...
Nicholas Denney Posted April 2 Share Posted April 2 Nothing to worry about on these motors. As long as you can fit the coils in and they fit snugly, you're golden. You just need to put them in so that they are opposite rotation. The laminations don't have a front or back, that's determined after you put the motor together. The copper pieces are on the leading edge of the laminations, so in your picture the motor would spin clockwise. Quote Link to comment Share on other sites More sharing options...
Tim Babcock Posted April 2 Author Share Posted April 2 Thanks to all you guys. Its running good. Quote Link to comment Share on other sites More sharing options...
