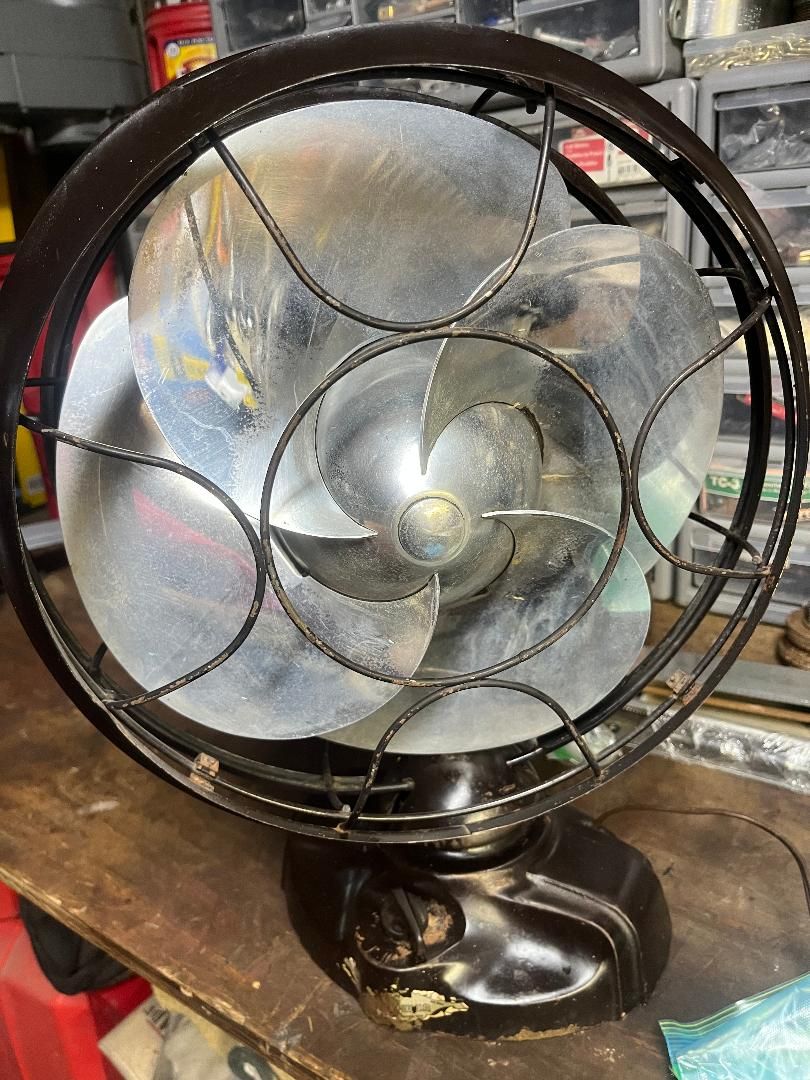

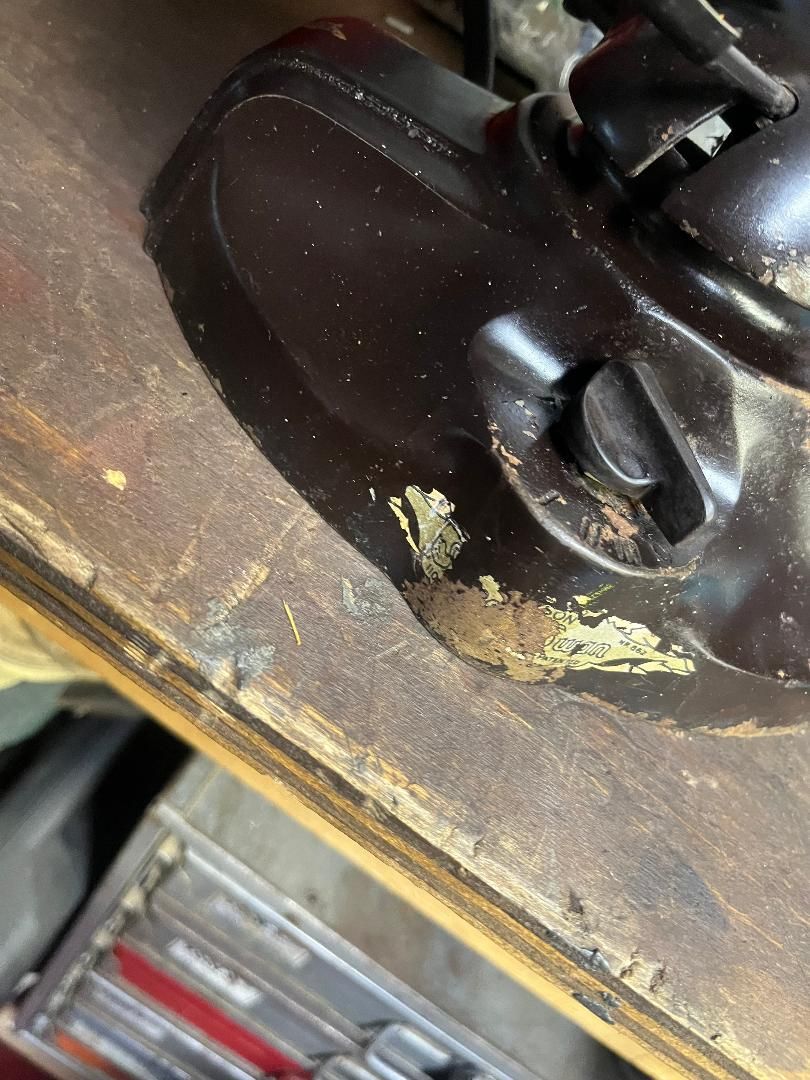

Jason Sliver Posted August 4 Share Posted August 4 Hello all I just picked up a 12" Silver swan with the three speed switch for restoration and I was wondering what year and model number/letter variation it is? I am looking to get replacement decals for it and I wanted them to be correct. I also noticed it has a three wire head wire and i was wondering if anyone knew what the appropriate resistance readings should be so I can test the coil and make sure it is still good. Thanks! 1 Quote Link to comment Share on other sites More sharing options...

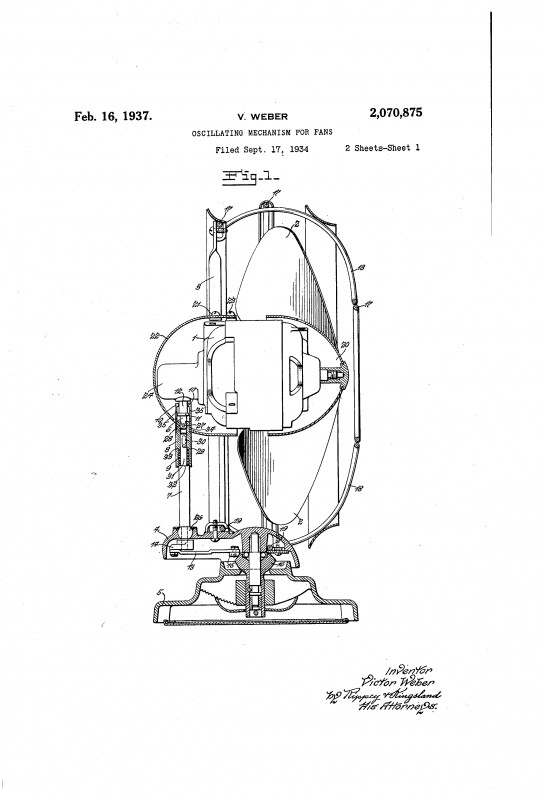

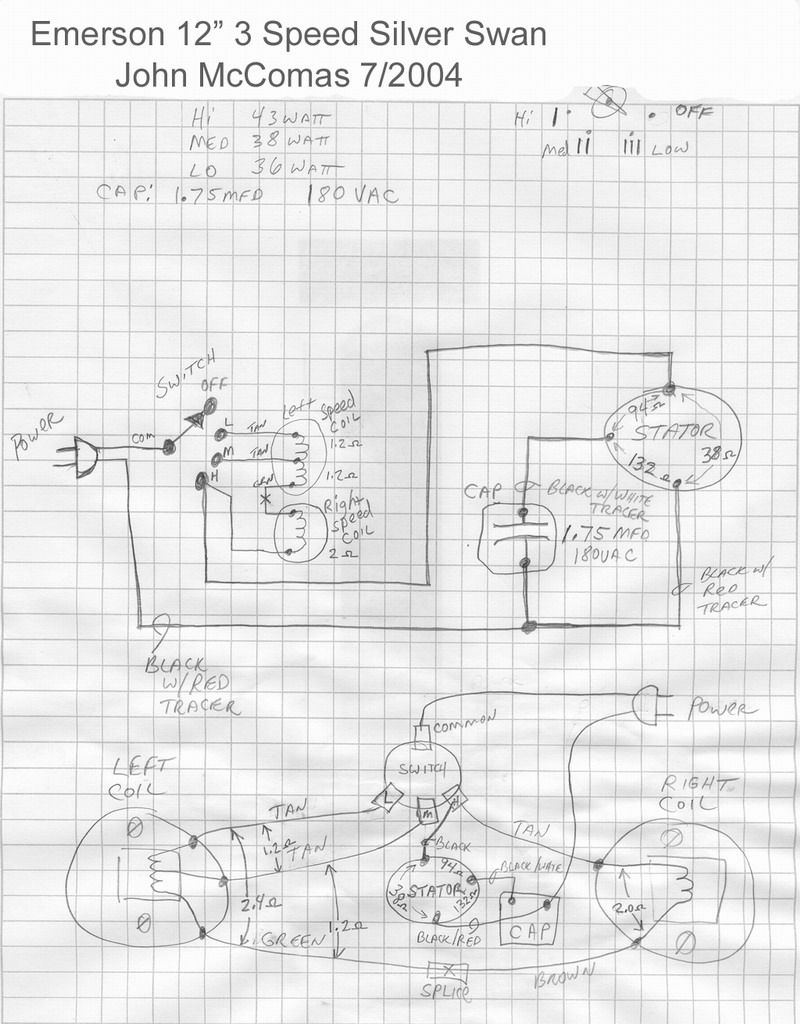

Mark Olson Posted August 4 Share Posted August 4 Hi Jason, Those are a bit intense to "just check", but here is a John McComas drawing that may help you. 1 Quote Link to comment Share on other sites More sharing options...
Steven P Dempsey Posted August 4 Share Posted August 4 first year, 1935 or 1936, Ihad a nice collection - - all sold. 1 Quote Link to comment Share on other sites More sharing options...

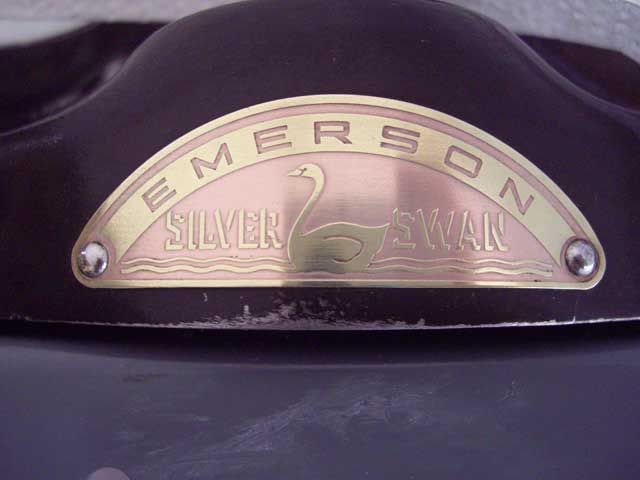

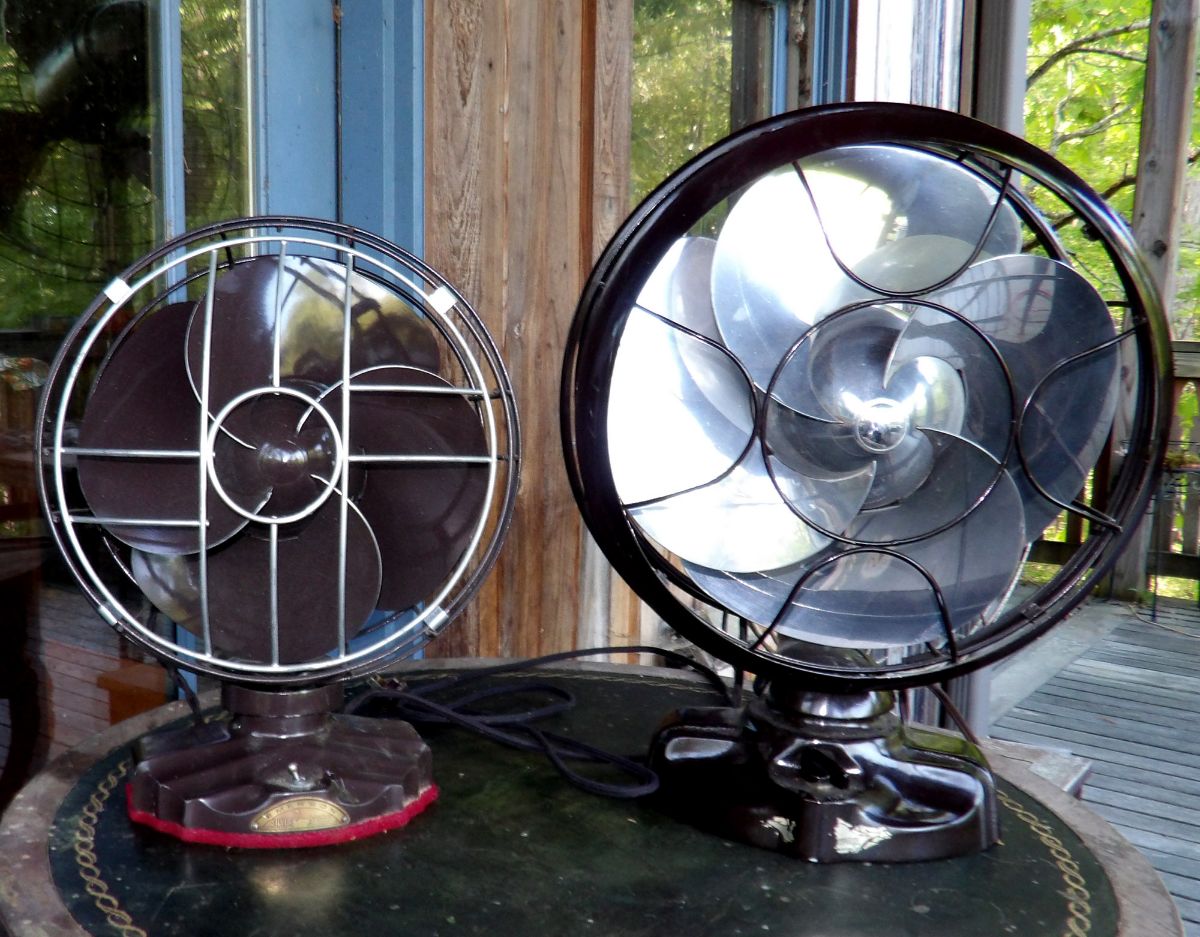

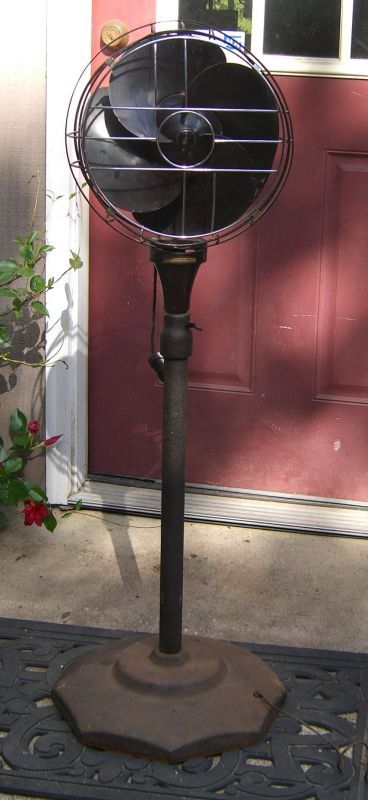

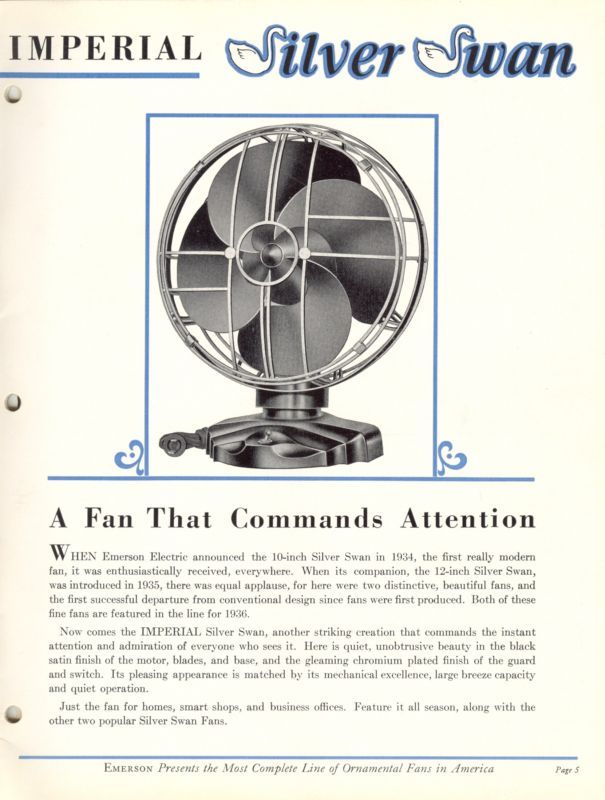

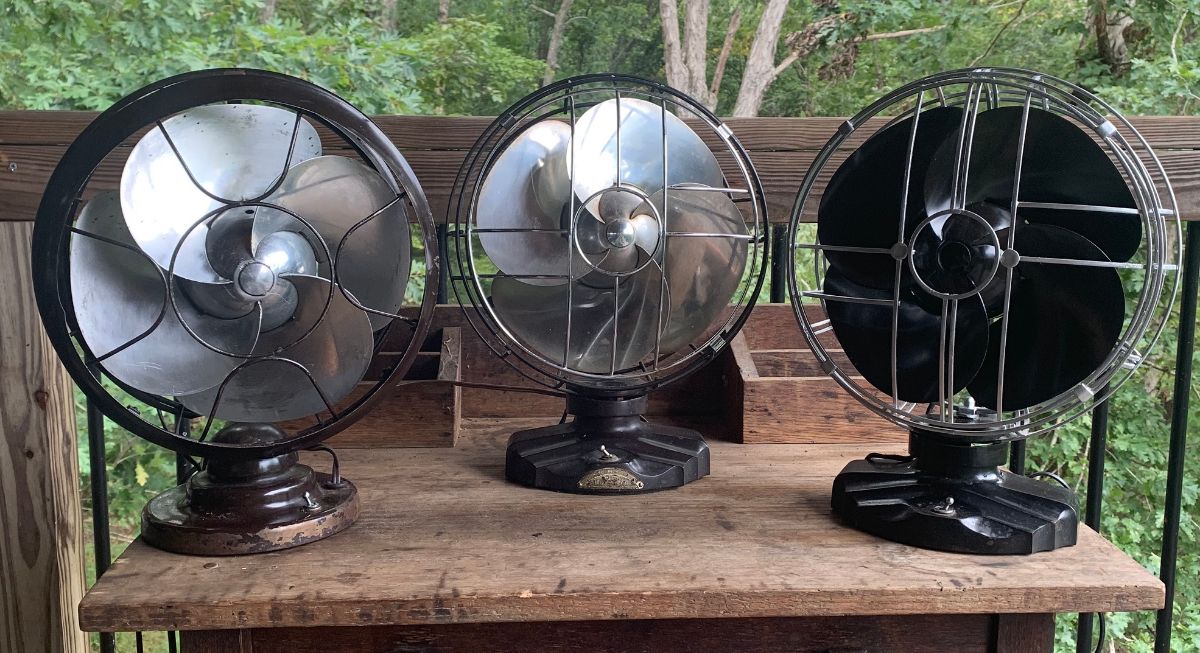

Steven P Dempsey Posted August 4 Share Posted August 4 Later models had copper/brass tags I had a 10 & 12"Pedestals, super nice. The "Imperial" came out late -1937-8 2 Quote Link to comment Share on other sites More sharing options...

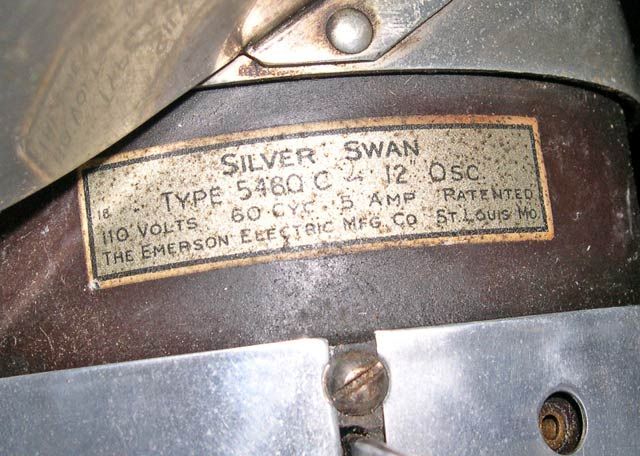

Jason Sliver Posted August 4 Author Share Posted August 4 Thanks for the advice guys. Would it be safe to assume that this a "5460 B" Model? I hope to tear it down further and drag out the multi meter this weekend and get a baseline on it. The motor spins very freely but it doesn't power up when I plug it in. The stator looks in excellent condition, and I'm hoping its just the capacitor (its the original one) - fingers crossed Quote Link to comment Share on other sites More sharing options...

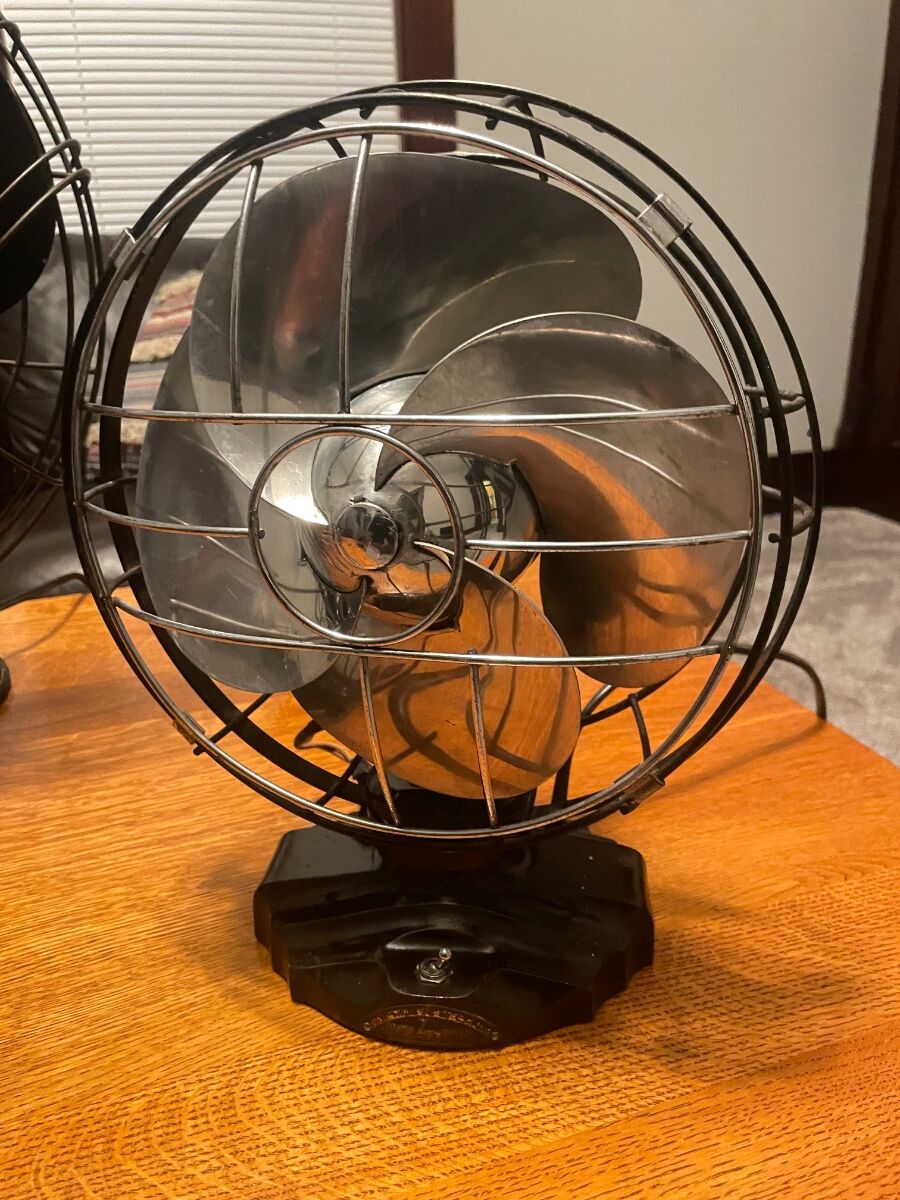

Marc Sova Posted August 7 Share Posted August 7 (edited) Nice. I just got a 10” a few weeks ago and I really dont know much about it, what year etc. It’s the fancy base with the nickel cage with the straight lines. Cleaned up beautiful with just blue magic and microfiber. Not perfect. Badge is pretty beat up. Head wire needs replaced ideally. But….it works and I’m just tickled lol. Edited August 7 by Marc Sova Typos 2 Quote Link to comment Share on other sites More sharing options...

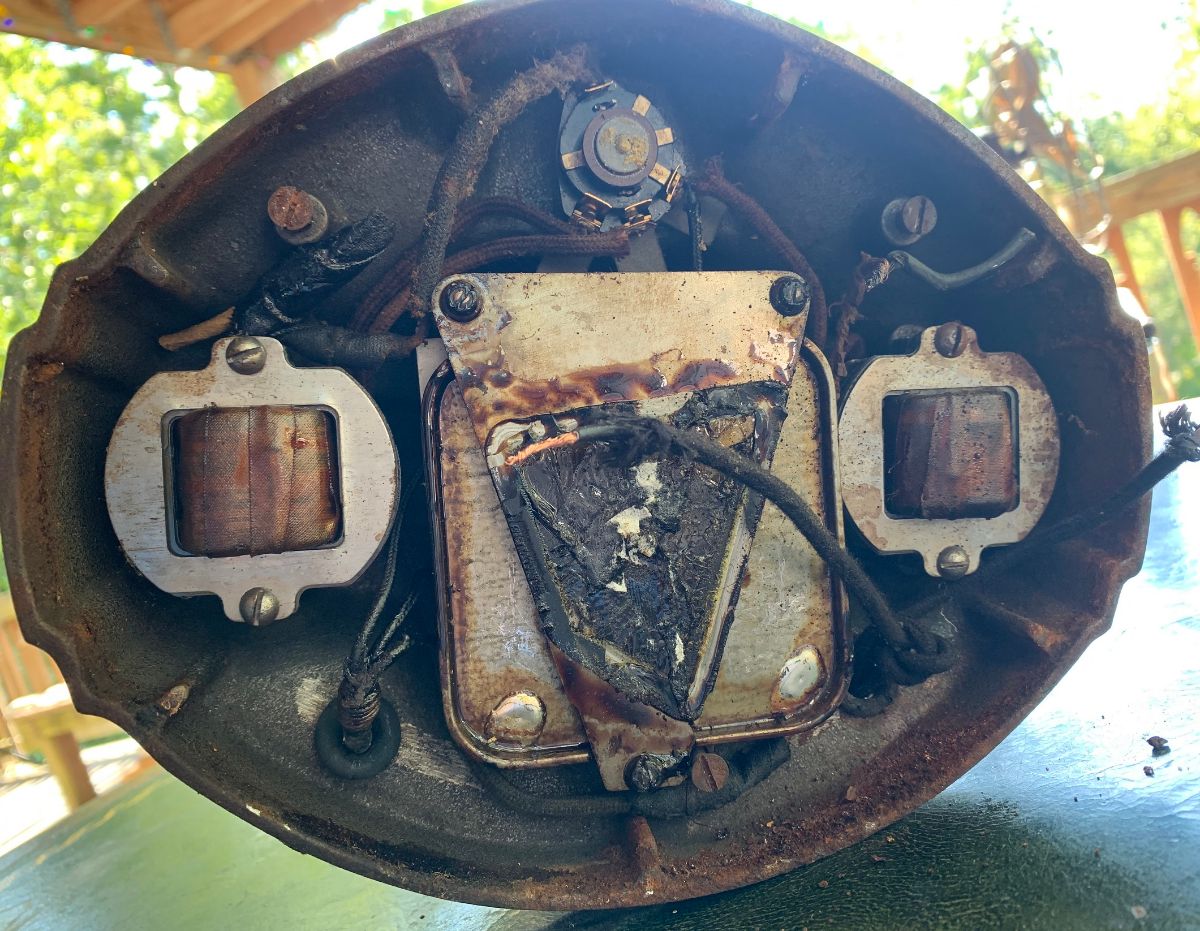

Steven P Dempsey Posted August 8 Share Posted August 8 check the capacitor, mine leaked out -the 12" has 2 speed coils! 1 Quote Link to comment Share on other sites More sharing options...

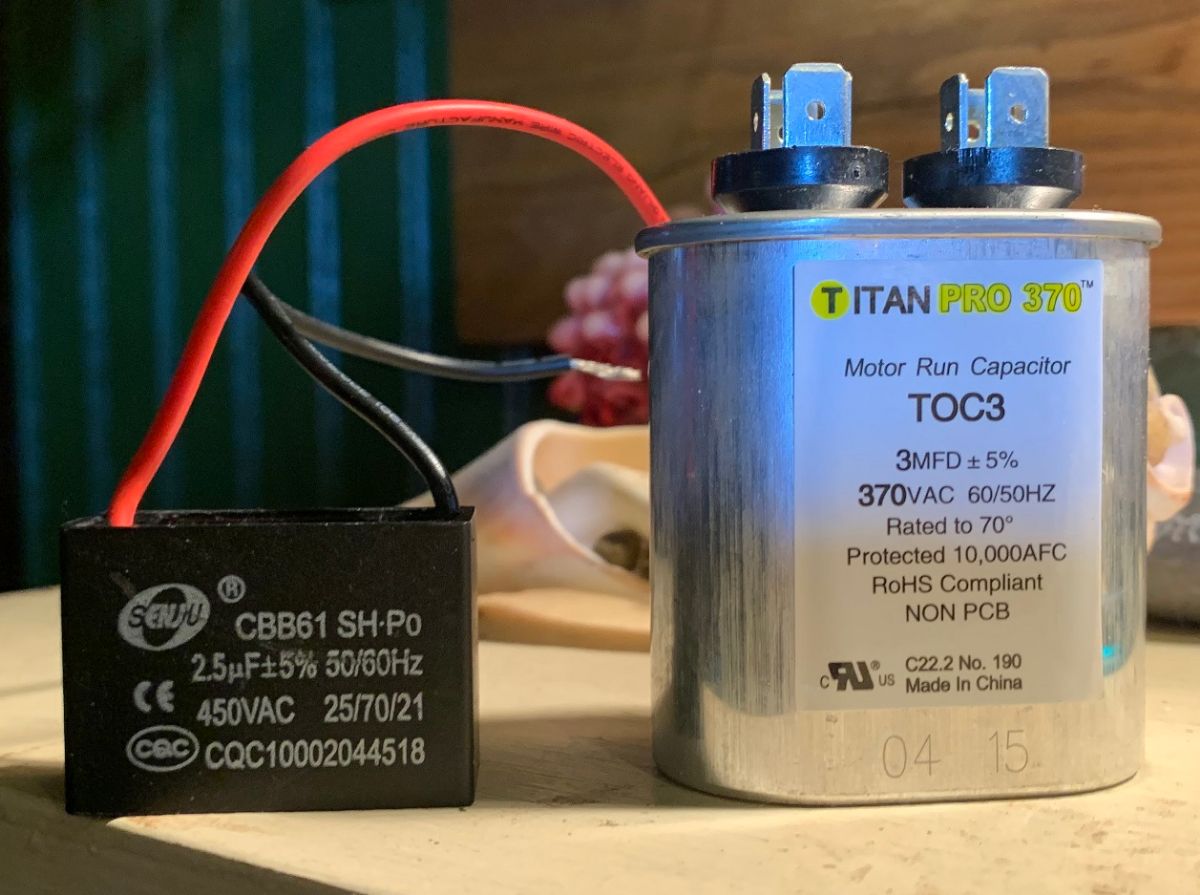

Steven P Dempsey Posted August 8 Share Posted August 8 I use solid state caps Quote Link to comment Share on other sites More sharing options...
Jason Sliver Posted August 10 Author Share Posted August 10 Thanks for the pic of solid state capacitor, I was wondering what size to buy. I have an extra 1.75 uF lying around that I was going to try, but I ll just pick up a 2.5 uF one Mine doesn't appear to have leaked, but I haven't gotten around to testing it yet. Mine also has the 2 speed coils. Ill try to post some more pics later Quote Link to comment Share on other sites More sharing options...
Chris Jacobsen Posted August 10 Share Posted August 10 On 8/8/2023 at 9:31 AM, Steven P Dempsey said: I use solid state caps Solid state not referring to both I assume as the right is liquid. Quote Link to comment Share on other sites More sharing options...

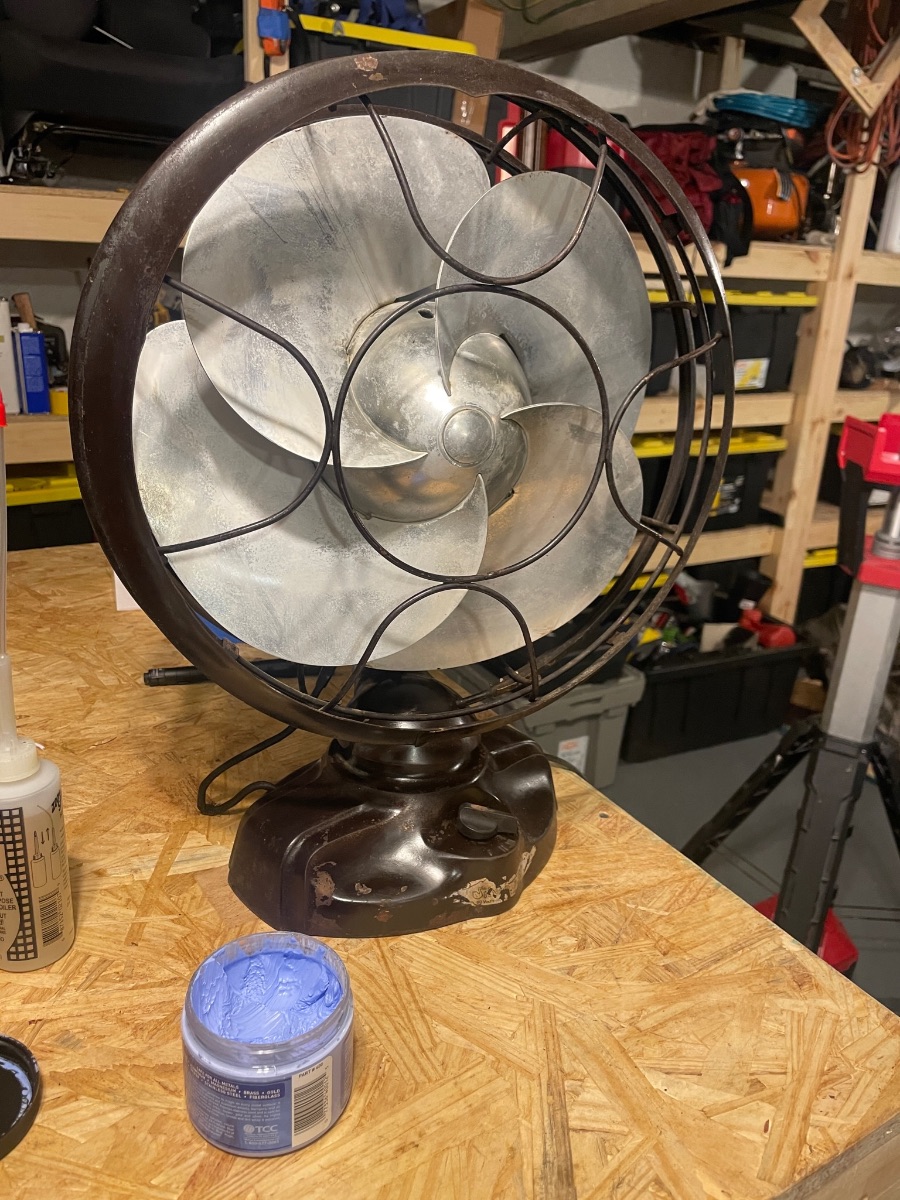

Marc Sova Posted September 23 Share Posted September 23 On 8/8/2023 at 12:29 PM, Steven P Dempsey said: check the capacitor, mine leaked out -the 12" has 2 speed coils! So what’d you replace it with exactly??? I now also have a 12” earlier version (with the painted cage). And trying to buy a 12 chrome cage Quote Link to comment Share on other sites More sharing options...
