Diehl - Jandus/Adams & Bagnall - Dayton Fan & Motor - Shedd Oscillation Mechanism Timeline

[Russ Huber]

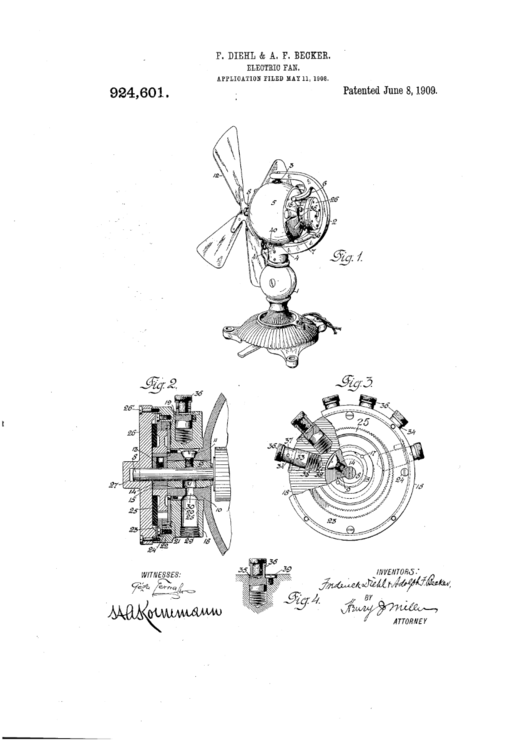

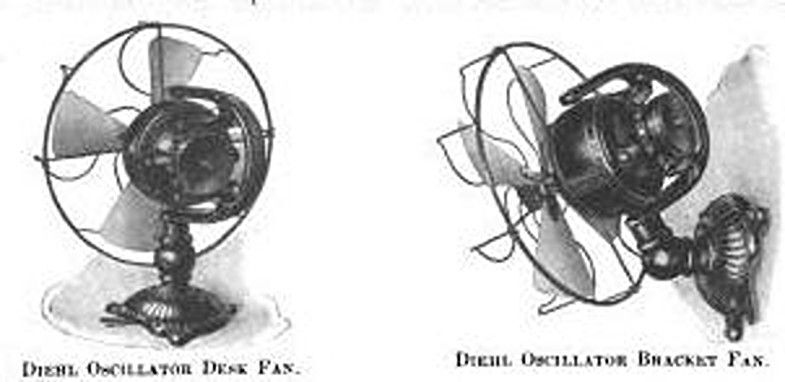

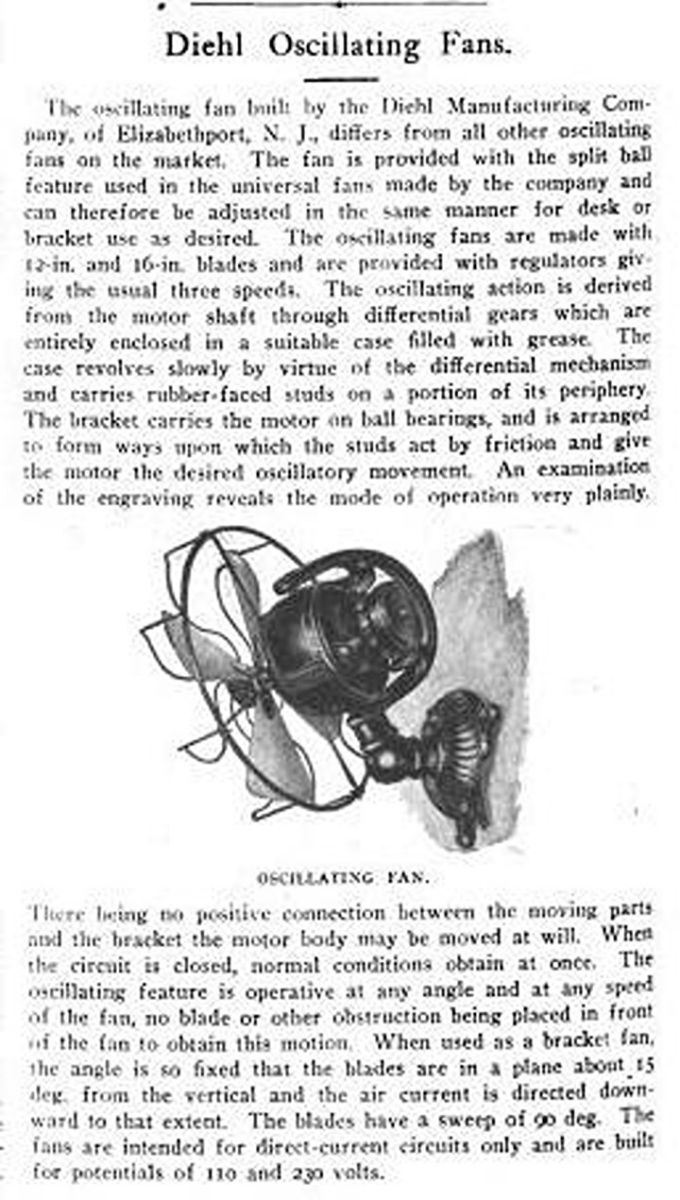

Diehl.

Edited April 15, 2024 by Russ Huber

[Russ Huber]

Jandus/Adams & Bagnall







[Russ Huber]

Dayton Fan & Motor Co.

[Russ Huber]

Shedd.







[Russ Huber]

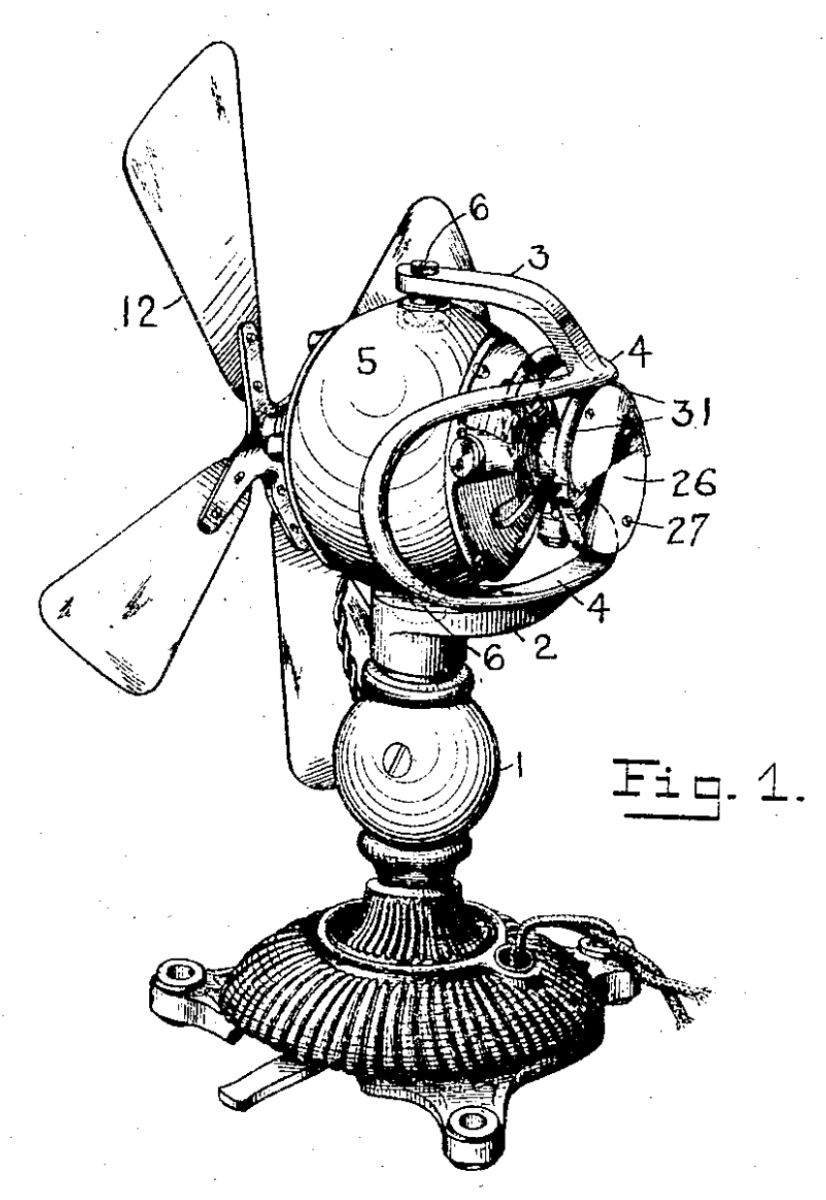

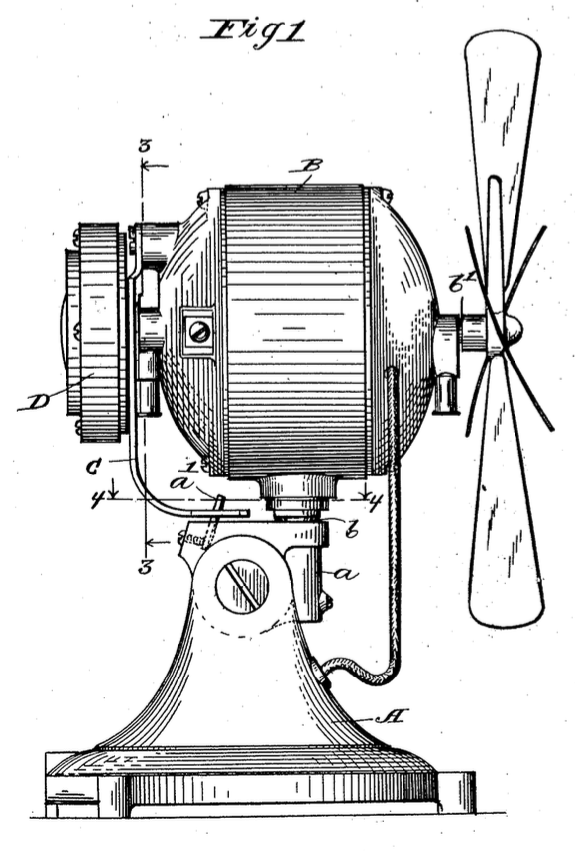

Did Jandus Bernard Stowe pay Diehl patent rights to the oscillating mechanism?

[Russ Huber]

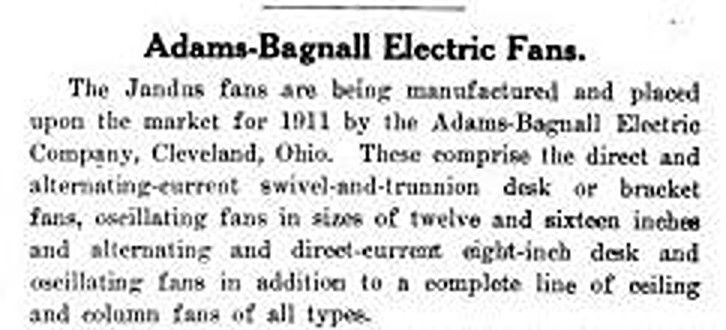

Adams & Bagnall offered a Jandus badged DC vane oscillator in 1911.  Jandus/ABJandus, Dayton Fan & Motor, and Shedd scratched each other's backs in 11 sharing fan motor components and models to complete their fan motor line to compete in the fan motor market.

[Steve Rockwell]

" Posted April 15 (edited)

Diehl."





[Steve Rockwell]

"Posted April 15

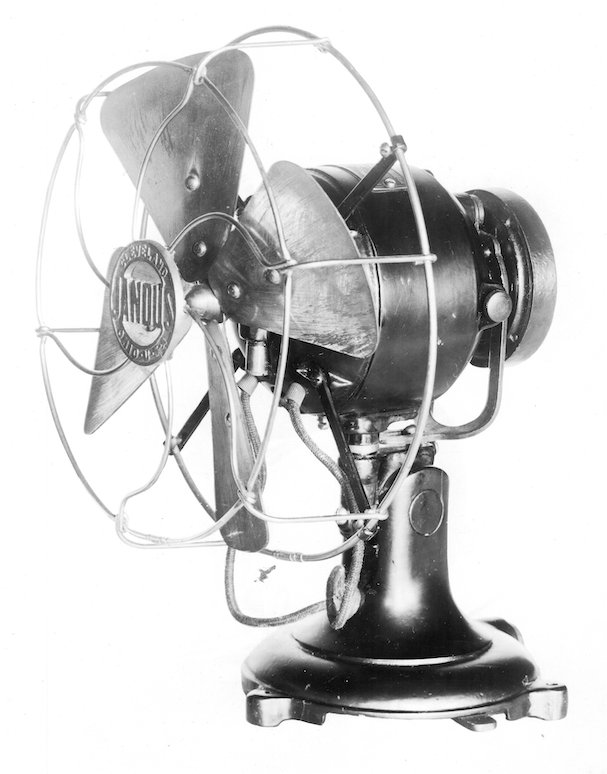

Jandus/Adams & Bagnall"





[Russ Huber]

1 hour ago, Steve Rockwell said:



" Posted April 15 (edited)

Diehl."

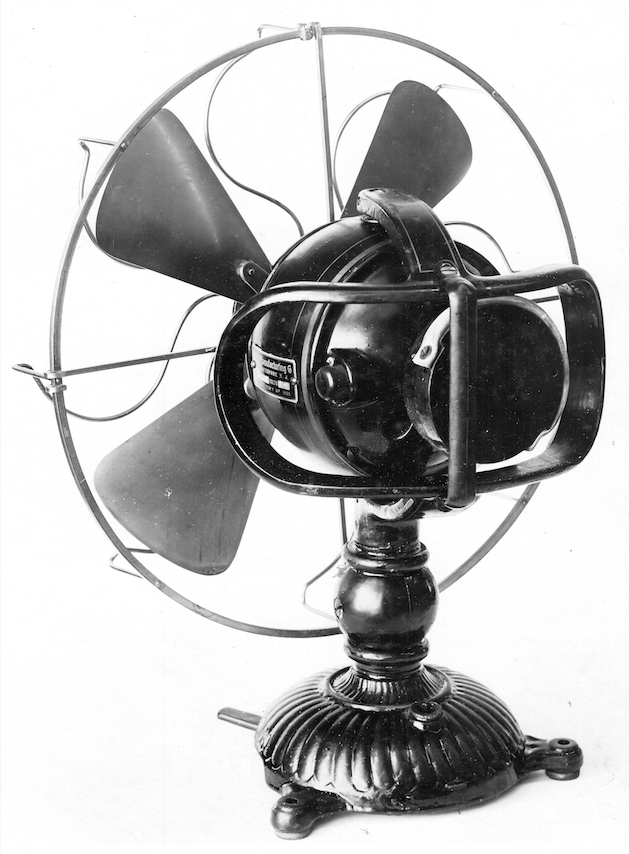

I am fairly confident (impression) the image you posted above is a prototype design that didn't go to market.

Edited June 8, 2024 by Russ Huber

[Russ Huber]

1 hour ago, Steve Rockwell said:



"Posted April 15

Jandus/Adams & Bagnall"







There were Dayton tagged models of the same fan. Surprised that none have to the best of my knowledge surfaced.

Edited June 8, 2024 by Russ Huber

[Anthony Lindsey]

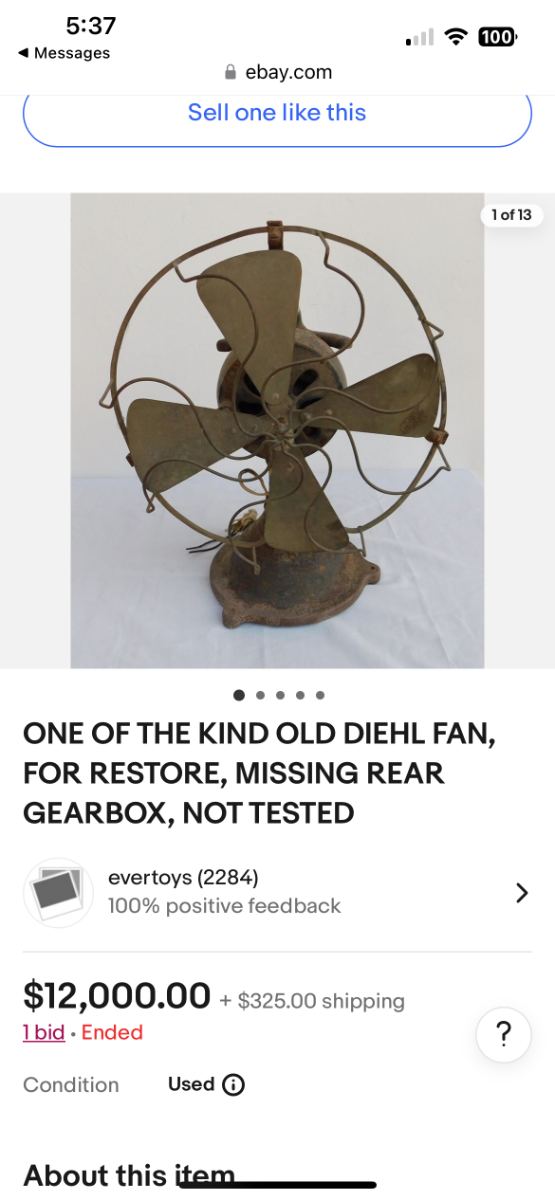

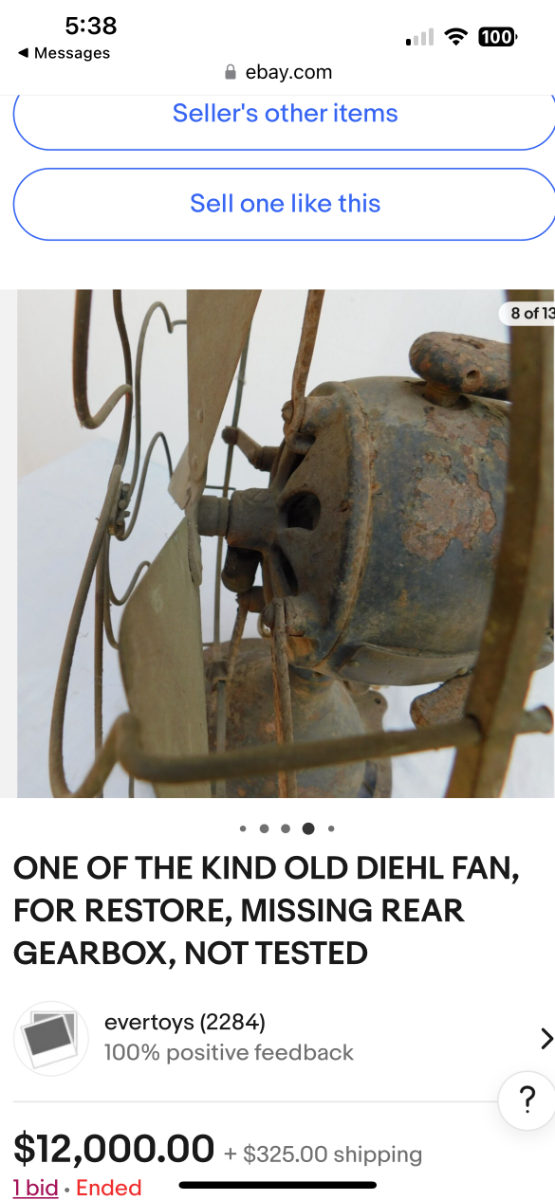

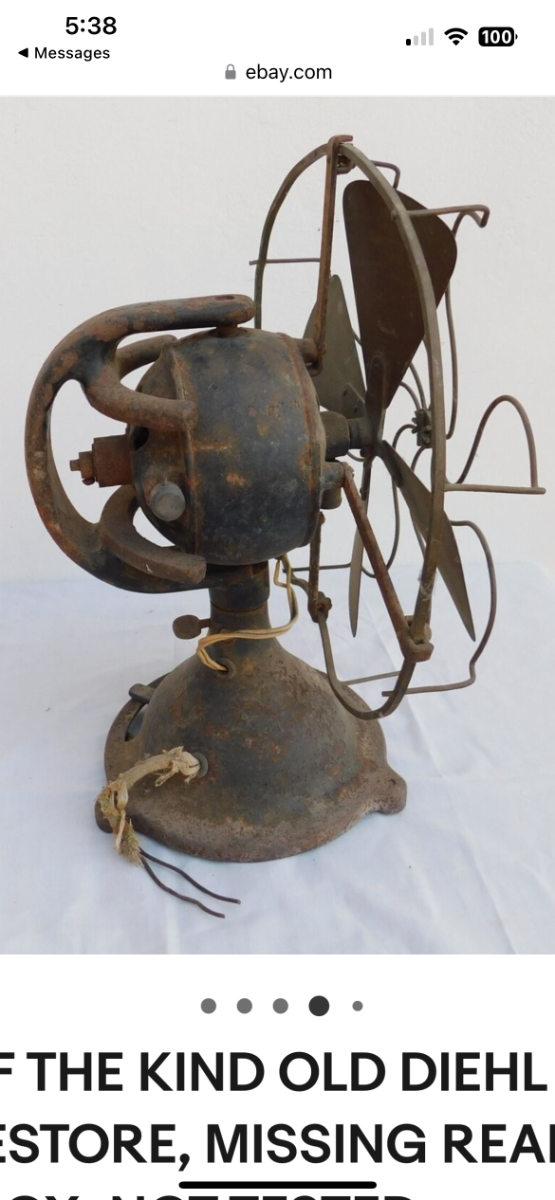

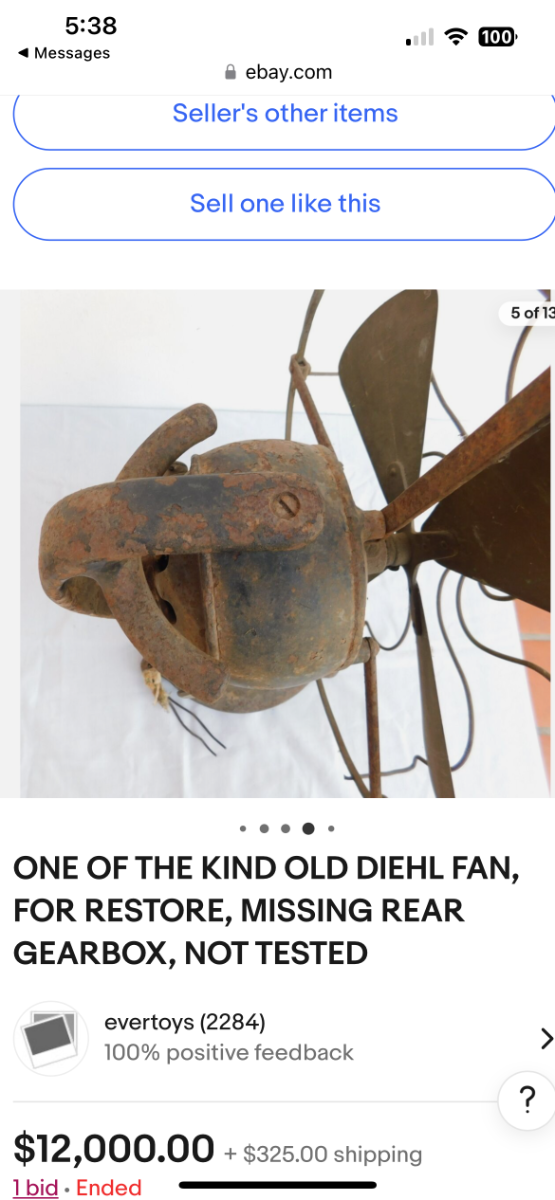

Here's one for sale.   Break out the wallet!



https://www.ebay.com/itm/256428188023?itmmeta=01HZTY3V9881R1ETRYQ6KBSFVW&hash=item3bb44fa177:g:HoAAAOSwDnpfqMI5

[Russ Huber]

2 hours ago, Steve Rockwell said:



"Posted April 15

Jandus/Adams & Bagnall"

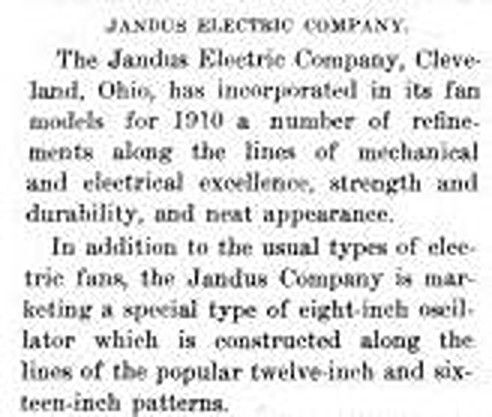

Introduced in 1910. Still on the market 1911. Electrical trade I have scanned does not clearly support it on the market in 1912.

[Russ Huber]

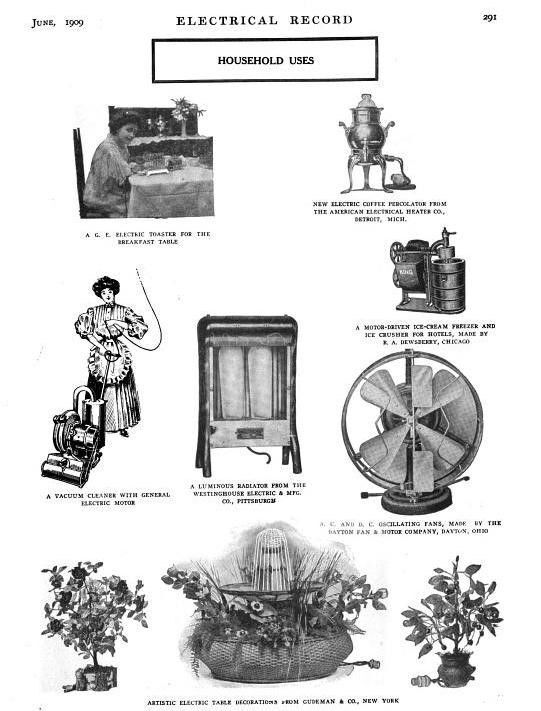

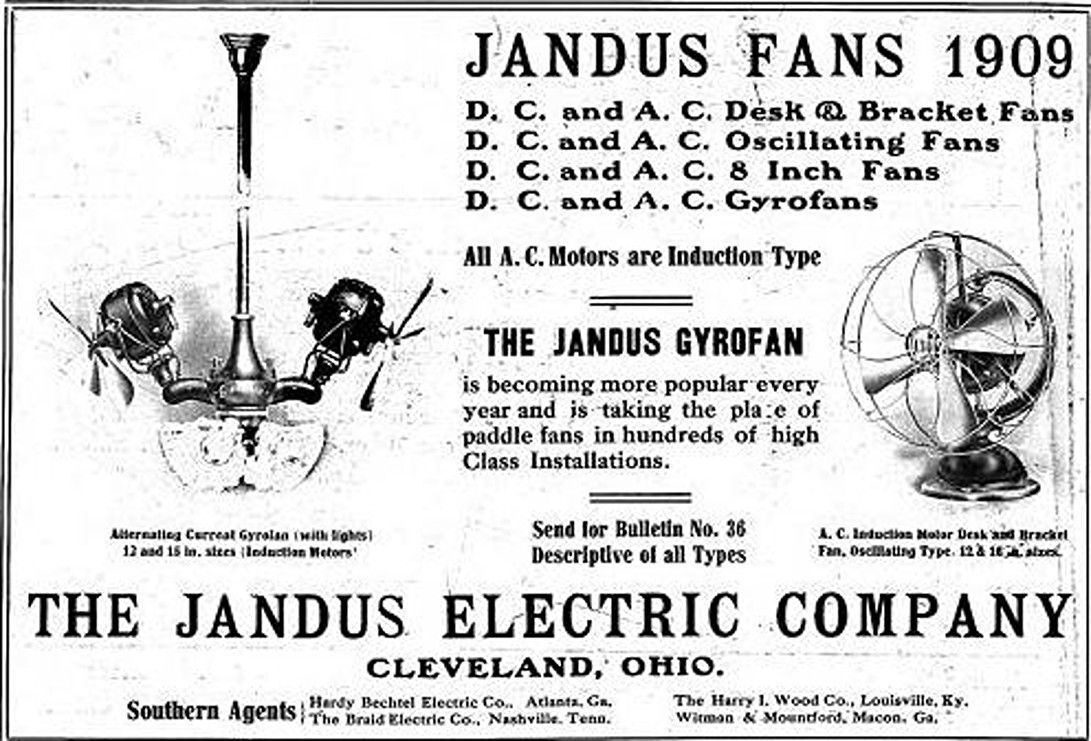

Jandus appears to have partnered with Dayton Fan & Motor for their 8" residence stationary desk fan as early as 1909. Jandus tagged them as their own fan motor line.

[Mel Lagarde]

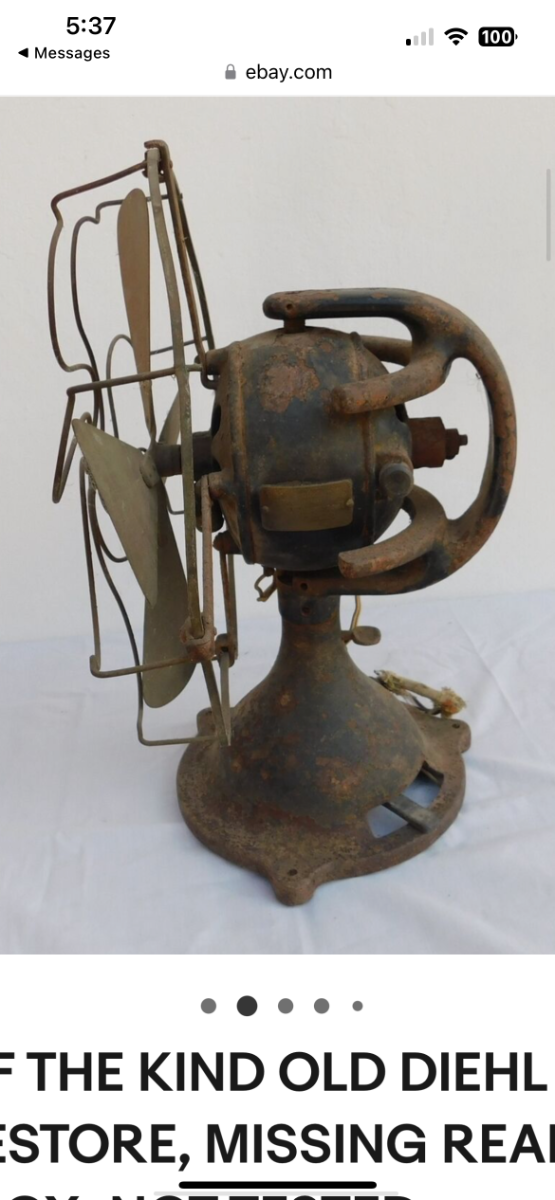

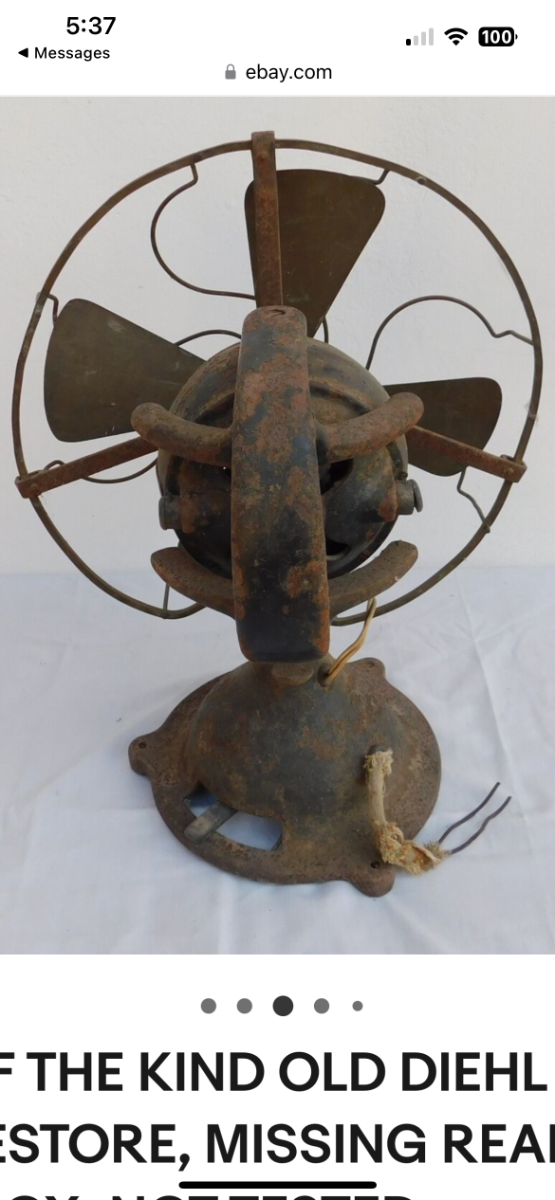

Thank you for posting this for us, Russ.    That walking foot Diehl is one difficult fan to find in the flesh.  What an amazing piece of engineering.  Great post as usual.


Mel

[Russ Huber]

Thanks, Mel. And a super thanks to Steve Rockwell for generously sharing those priceless images from the past. A window in time many of us will never see in the flesh.

The Diehl walking foot and the 8" Jandus/Dayton oscillators with Stowe's patented mechanism were manufactured in a small window of time.

[Chris Campbell]

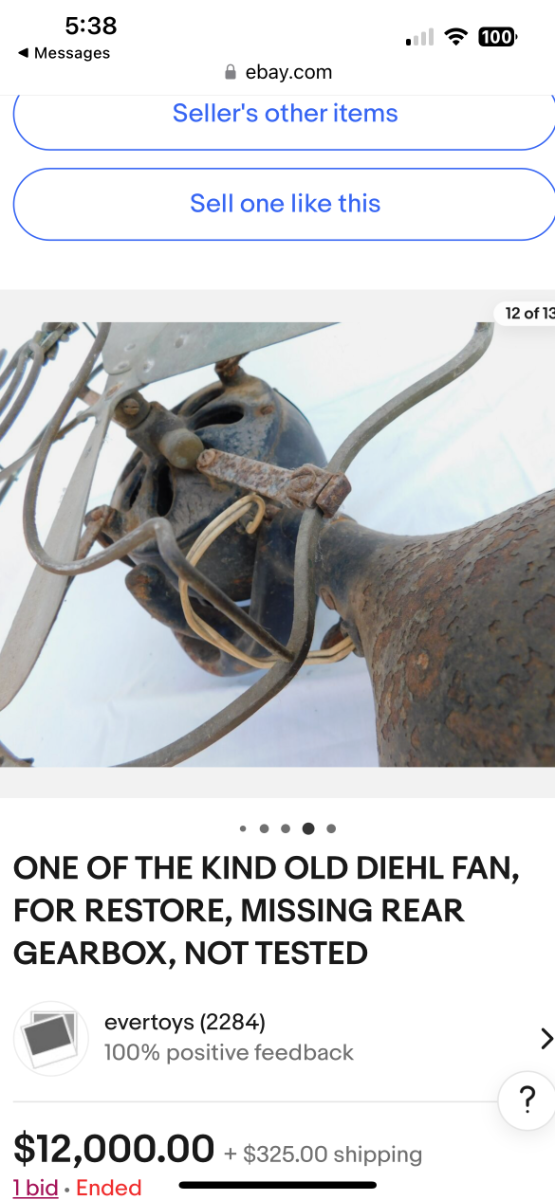

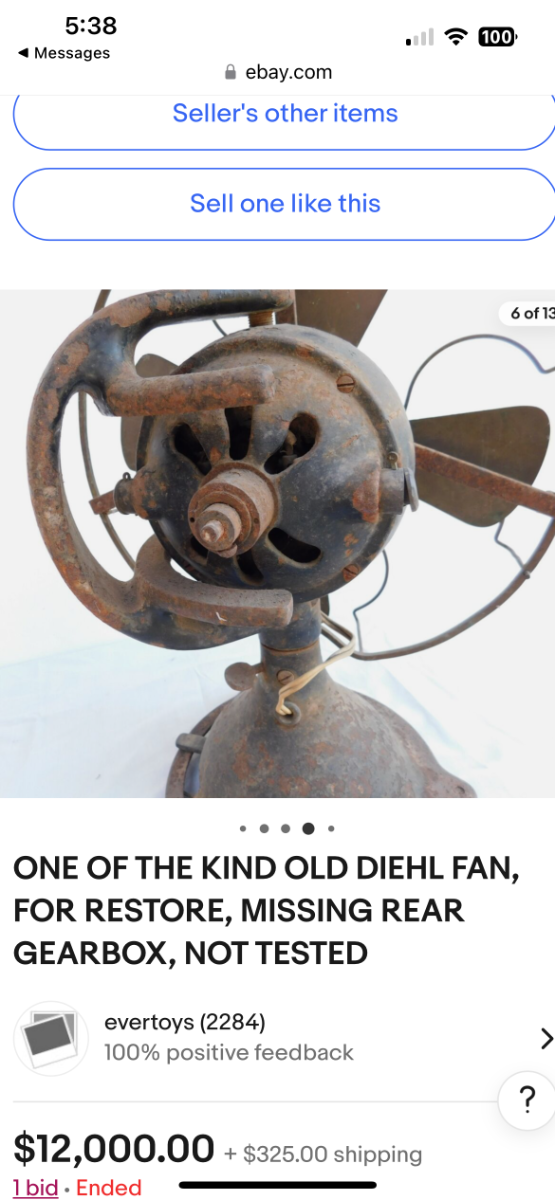

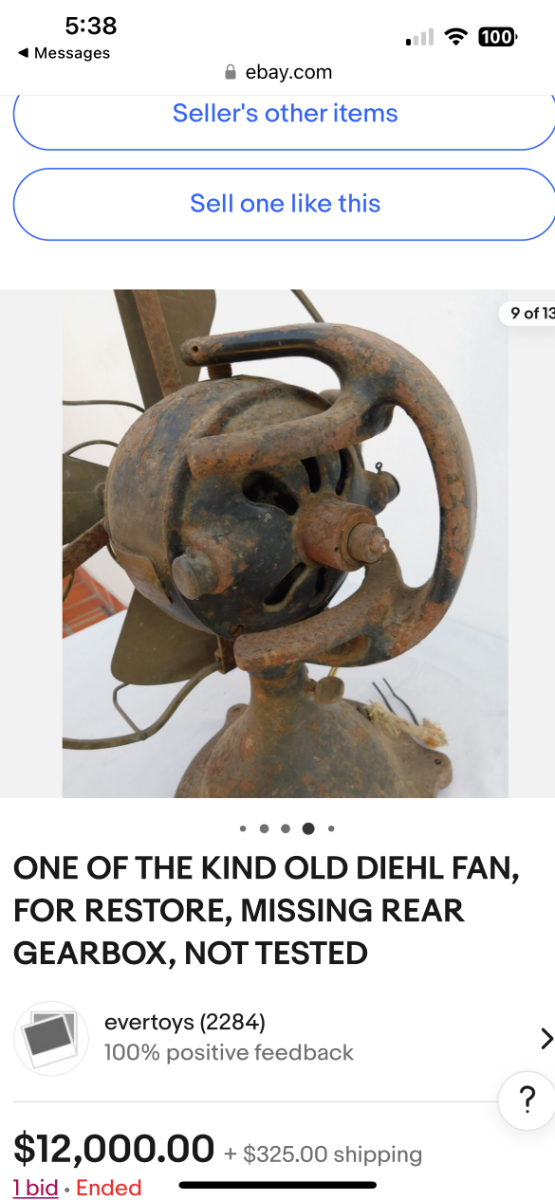

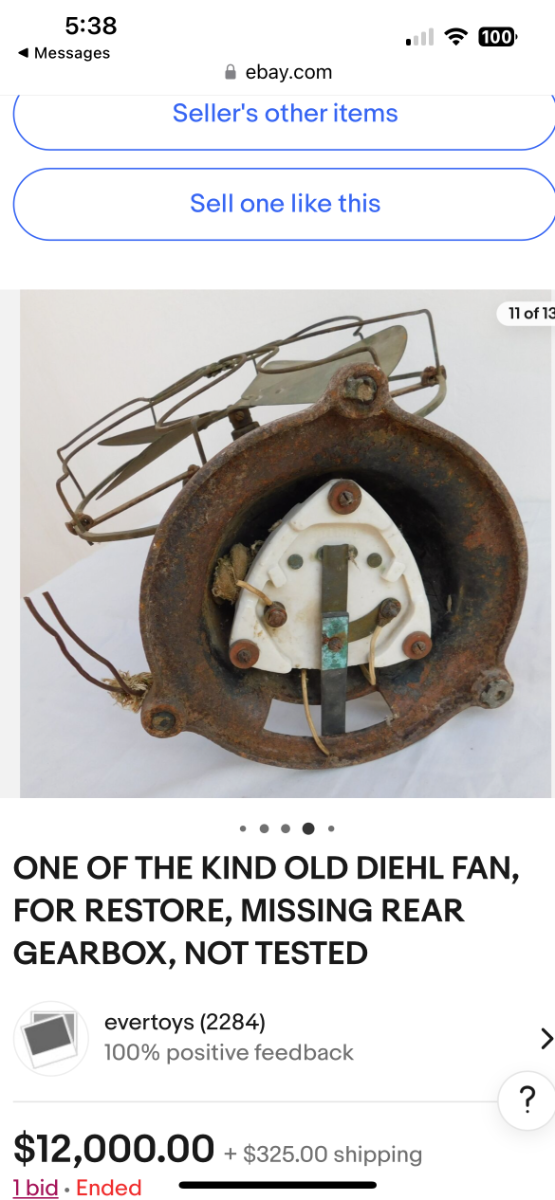

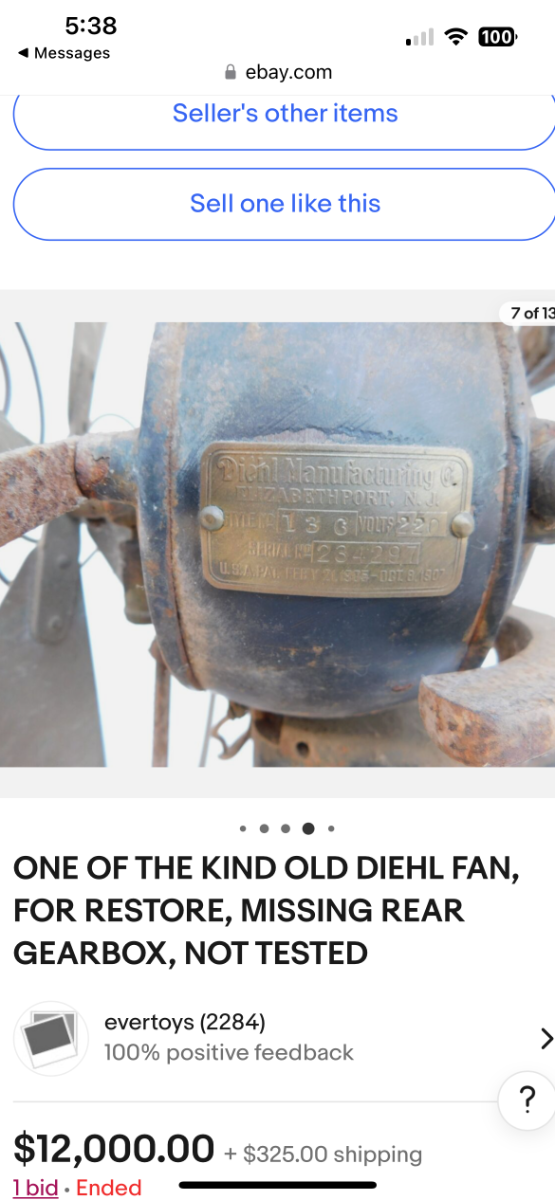

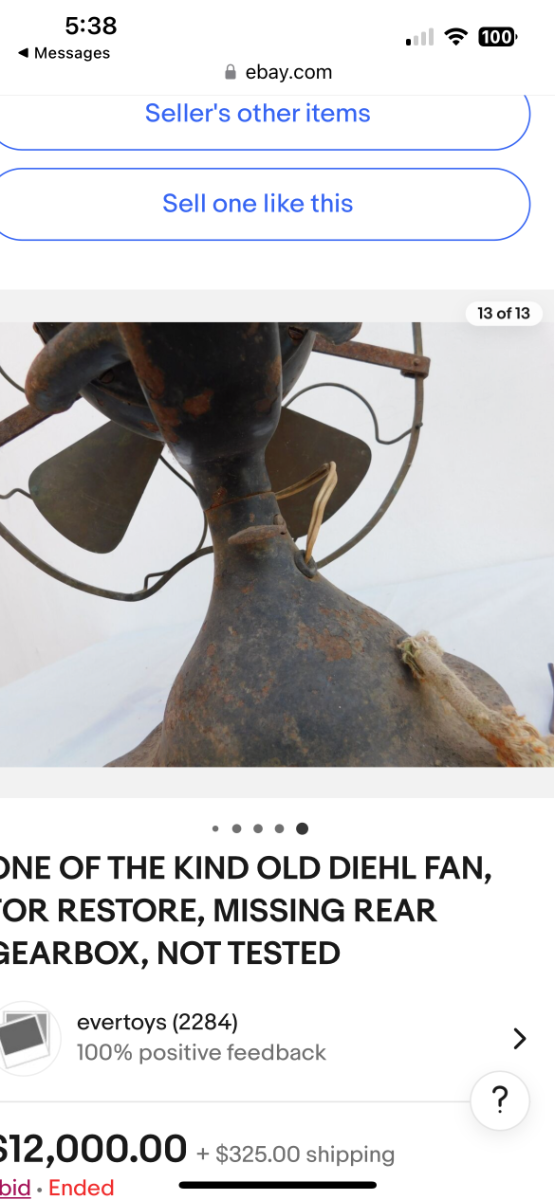

Recent Diehl

[Jim Kovar]

On 4/15/2024 at 1:32 PM, Russ Huber said:

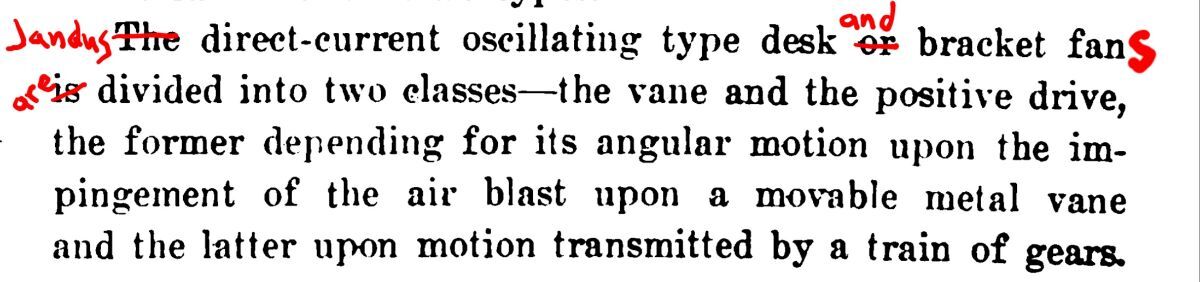

Adams & Bagnall offered a...  ...vane oscillator...

I don't believe A-B ever
   offered a vane oscillator.



Interpretation...

I construe, "The...  ...fan..."
as all fans, of all brands in
the class of DC oscillators,
just to make the oscillator
types distinction.

If just "Jandus," would not
it had been written...



Someone please
prove me wrong!

                   I'll eat crow.
                      Yummy!

       It kinda taste like
               frog legs.

[Jim Kovar]

[Russ Huber]

42 minutes ago, Jim Kovar said:

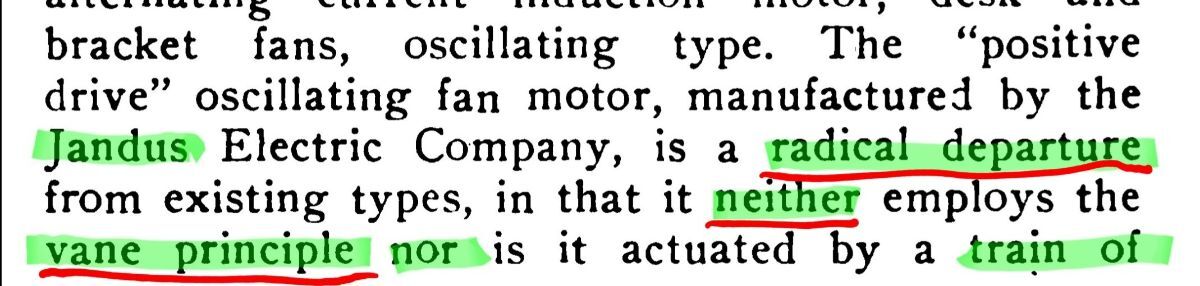

C-frame. Positive drive. "MANUFACTURED BY"

[Russ Huber]

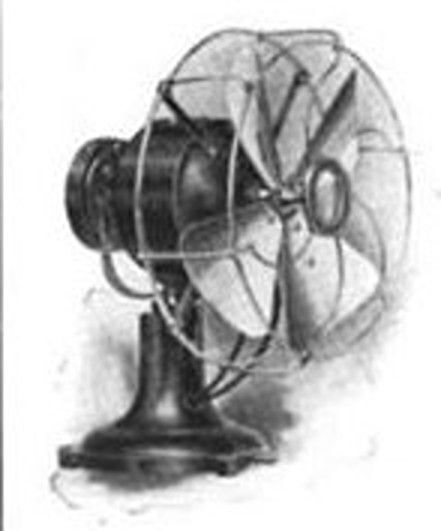

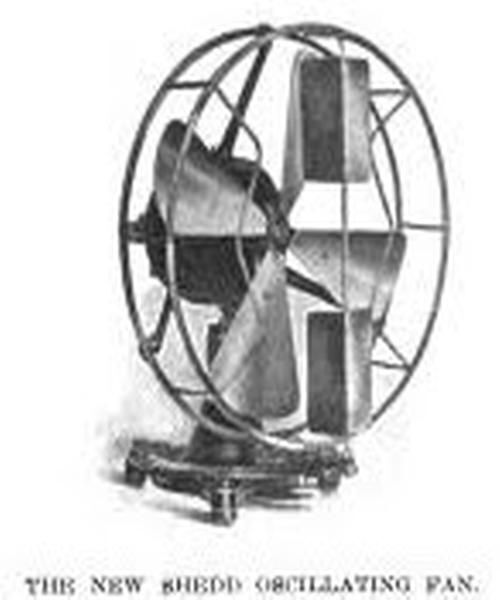

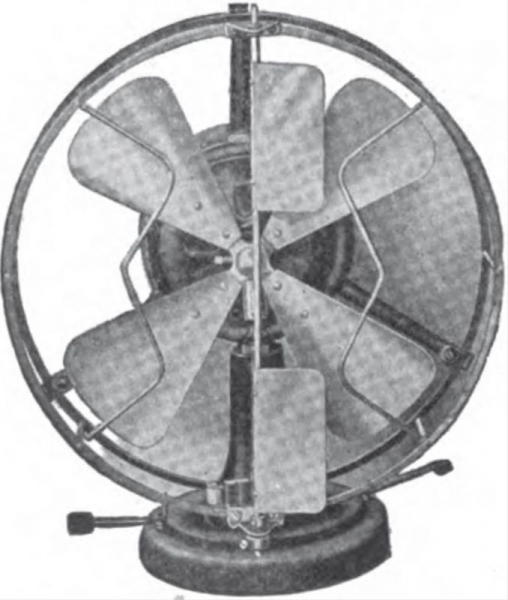

1909 Shedd introduces their NEW vane oscillator. Dayton appears to have rights to the Shedd vane as well as Westinghouse for the 09 season.

[Russ Huber]

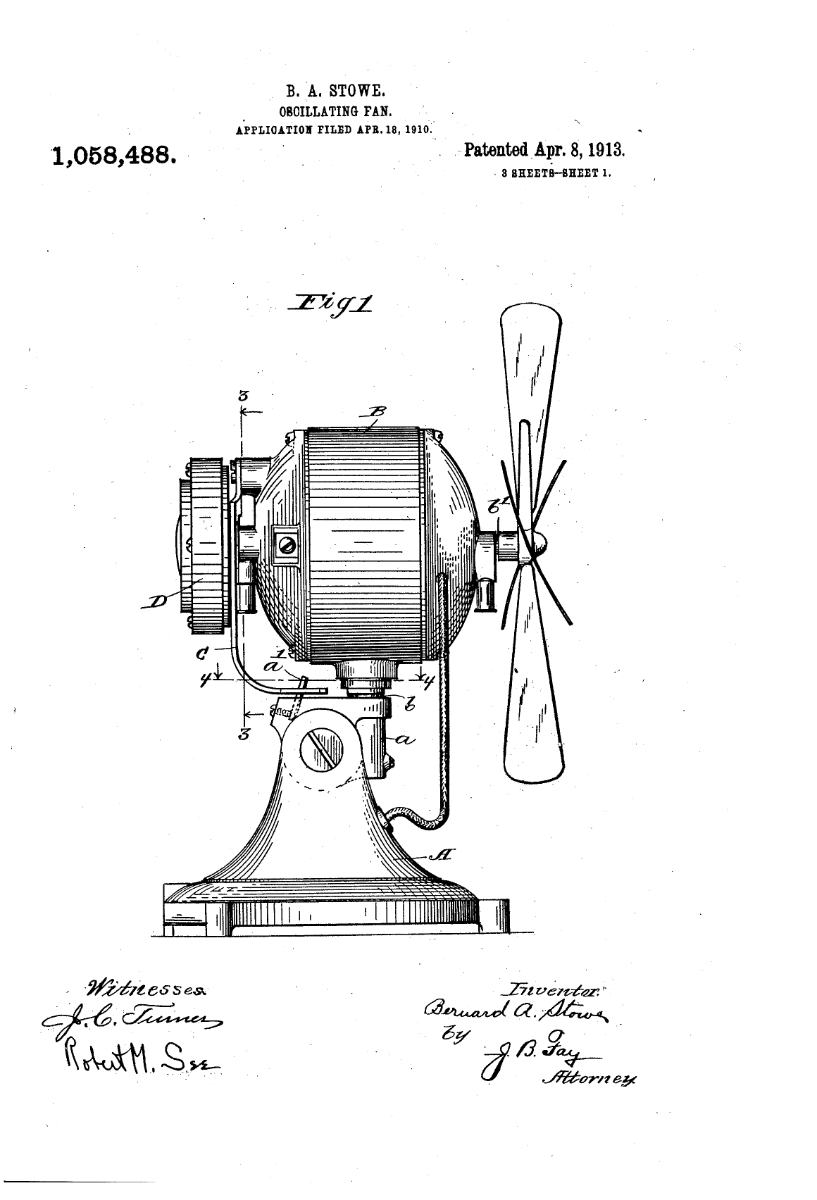

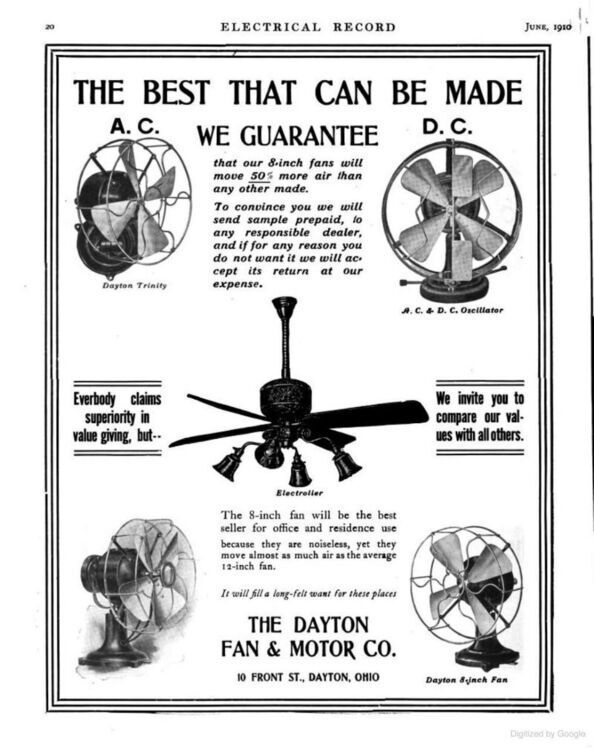

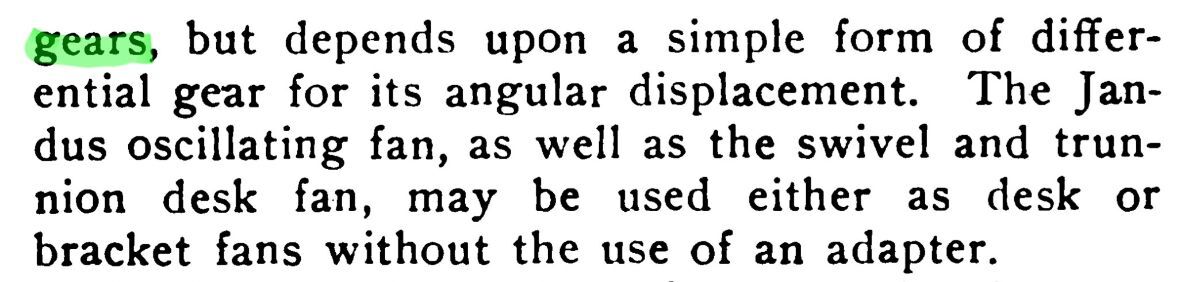

In 10 Dayton advertises Bernard Stowe's patented POSITIVE drive 8" RESIDENCE oscillator to their fan motor line. At the same time Jandus has Bernie's patented Positive drive 8" fan added to their fan motor line using a Dayton fan motor frame. What kind of deal did Jandus & Dayton Fan & Motor work out?

Edited August 29, 2024 by Russ Huber

[Russ Huber]

Just now, Russ Huber said:

What kind of deal did Jandus & Dayton Fan & Motor work out?

Jandus rebadging and marketing Dayton's Shedd vane oscillator as their own?

[Russ Huber]

Jandus will make mention in electrical trade they are marketing an 8" oscillator and a vane, but you will not see any images advertised in their fan motor line in that small time slot that they were marketed.

[Russ Huber]

2 hours ago, Jim Kovar said:

I don't believe A-B ever
   offered a vane oscillator.

Your entitled to believe what you want. There is no doubt in my mind Jandus marketed a Dayton Shedd vane as part of their fan motor line for one or two seasons. 🙂

[Russ Huber]

29 minutes ago, James Voss said:

Mr. Howerton bringing in the research

You got it. I wonder if Robert Howerton from Texas got a new name as well? I had an uncle named Bob Huber. 🙂

Edited August 29, 2024 by Russ Huber
